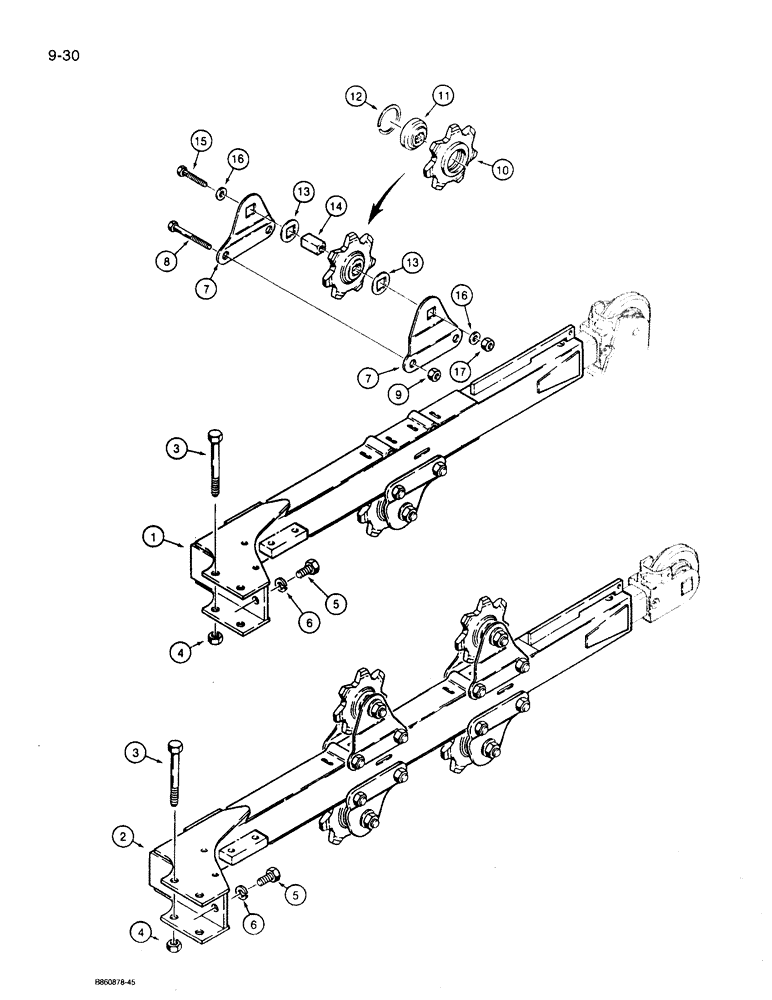

Запчасти Case 360 (9-030) - TRENCHER BOOMS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H651687

BOOM

UNIBOOM - 3 foot depth, channel or sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom, see Fig. 9-32 for channel

1шт.

1

H651679

BOOM

UNIBOOM - 4 foot depth, channel or sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom, see Fig. 9-32 for channel

1шт.

2

H651661

BOOM

UNIBOOM - 5 foot depth, sprocket, uses 2 sprockets on top and 2 sprockets on bottom

1шт.

3

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

4

232-41112

NUT,3/4"-10, GC

2шт.

5

326-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

2шт.

6

192-27

LOCK WASHER,3/4"

2шт.

7

H388959

BRACKET

sprocket mounting

2-4-8шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2-4-8шт.

9

232-41110

NUT,5/8"-11, GC

2-4-8шт.

H531251

PINION

SPROCKET ASSEMBLY - boom

1-2-4шт.

10

H115683

DRIVE SPROCKET

boom

1шт.

11

H747139

BALL BEARING

sprocket

1шт.

12

H33837

RING

snap, bearing retaining

1шт.

13

H117606

WASHER

sprocket

2-4-8шт.

14

H251033

BOOM

SHAFT - sprocket mounting

1-2-4шт.

15

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1-2-4шт.

16

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2-4-8шт.

17

232-41110

NUT,5/8"-11, GC

1-2-4шт.
