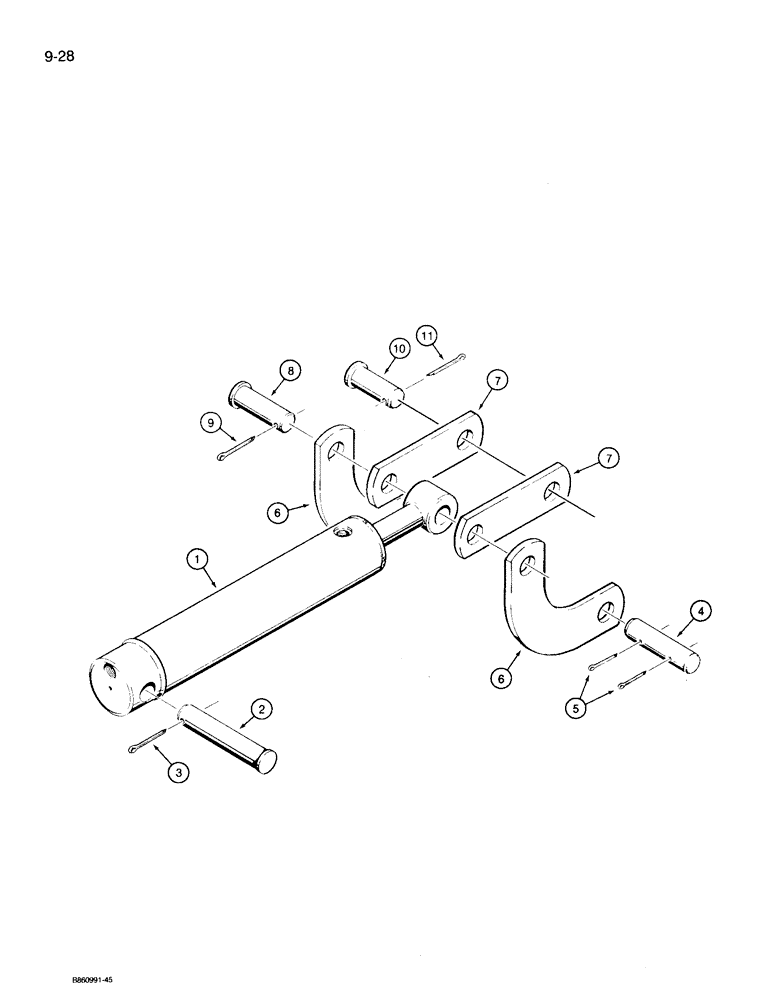

Запчасти Case 360 (9-028) - TRENCHER BOOM LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H530519

CYLINDER BLOCK

boom lift, parts list Fig. 8-16

1шт.

2

H114983

AXLE PIN,31.72mm OD x 163.51mm L

clevis, cylinder retaining, closed end of boom lift cylinder

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

1шт.

4

H150144

AXLE PIN

clevis, curved link, retaining

1шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

2шт.

6

H114108

DRAG LINK

curved

2шт.

7

H114116

DRAG LINK

straight

2шт.

8

H114975

AXLE PIN

clevis, links to cylinder, rod end of boom lift cylinder

1шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

1шт.

10

H114959

AXLE PIN

clevis, link to boom lever

1шт.

11

132-307

COTTER PIN,1/4" x 1 3/4"

1шт.
