Запчасти Case 360 (9-026) - TRENCHER DRIVE CHAIN GUARD AND DIRT DEFLECTOR (09) - CHASSIS/ATTACHMENTS

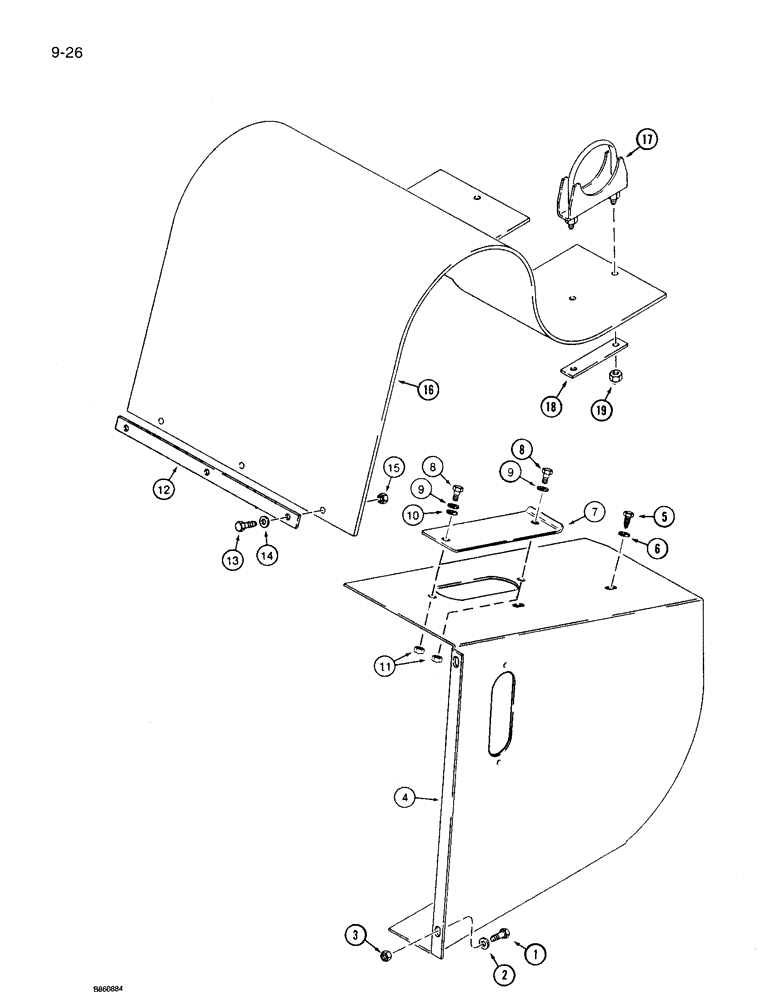

Схема запчастей Case 360 - (9-026) - TRENCHER DRIVE CHAIN GUARD AND DIRT DEFLECTOR (09) - CHASSIS/ATTACHMENTS
12
1
9
9
18
7
8
5
11
2
15
6
10
4
19
14
8
13
17
16
3

Артикул

Название

Примечание

Количество

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

2

H426775

WASHER

flat, 5/16 inch, hardened

3шт.

3

232-4115

LOCK NUT,5/16"-18, GC

3шт.

4

H672398

GUARD

dirt, chain drive

1шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

hex, self-tapping, 5/16 NC x 3/4 inch

5шт.

6

H426775

WASHER

flat, 5/16 inch, hardened

5шт.

7

H434516

COVER

chain drive access hole

2шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

9

H426767

WASHER

flat, 1/4 inch, hardened

4шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

11

232-4114

LOCK NUT,1/4"-20, GC

4шт.

12

H422154

STRAP

PLATE - mounting, deflector

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If Used

3шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch; If Used

3шт.

14

H426775

WASHER

flat, 5/16 inch, hardened

3шт.

15

232-4115

LOCK NUT,5/16"-18, GC

3шт.

16

H434108

SHUTTER

dirt

1шт.

17

H434145

CLAMP

dirt deflector, Incl. hardware, discard nuts and use Ref. 19 self-locking nuts

2шт.

18

H434110

LARGE PLATE

PLATE, LARGE clamp

2шт.

19

232-4116

NUT,3/8"-16, GC

Used in place of hex nuts that are included with Ref. 17 clamp

4шт.
