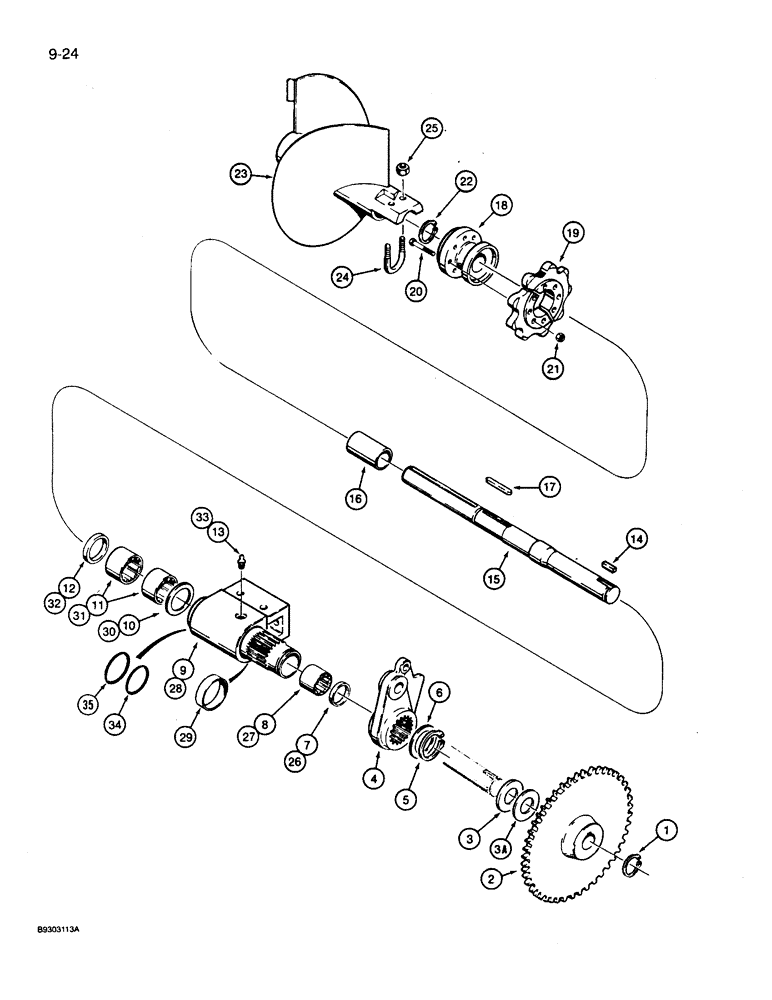

Запчасти Case 360 (9-024) - TRENCHER BOOM MOUNTING SHAFT AND AUGER (09) - CHASSIS/ATTACHMENTS

1

A7611

SNAP RING,#175, Ext

drive shaft, outer, right hand #175, Ext

1шт.

2

H150185

DRIVE SPROCKET

1шт.

3

H150151

WASHER

thrust, .125 inch (3.18 mm) thick

1шт.

3a

H340877

WASHER

thrust, .030 inch (0.762 mm) thick

1шт.

4

H433850

CRANK

boom positioning

1шт.

5

F11296

SNAP RING,#300, Ext

drive shaft, inner #300, Ext

1шт.

6

H150375

WASHER

thrust, boom crank

1шт.

H541052

MOUNTING PARTS

PIVOT ASSEMBLY - boom mounting, prior to P.I.N.JAF0104026, Incl. Ref. 7 - 13

1шт.

7

H749283

SEAL

grease

1шт.

8

H748228

BEARING, NEEDLE

pivot

1шт.

9

H140319

HOUSING

PIVOT - boom mounting

1шт.

10

H150169

WASHER

thrust, pivot

1шт.

11

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

pivot

2шт.

12

H759104

OIL SEAL

grease

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

H34488

KEY

square, 3/8 x 1-1/2 inch long

1шт.

H541011

SHAFT

trencher drive, Incl. Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - trencher drive

1шт.

16

H114066

SLEEVE CYLINDER

BUSHING - shaft, must be machined after installation on shaft

1шт.

See 360 trencher service manual for machining specifications for bushing. Installed in boom pivot bushings, P.I.N JAF0104026 and after.

1шт.

17

H115816

KEY

square, 1/2 x 3-1/4 inch long

1шт.

18

H114025

HUB CAP

sprocket mounting, 1-7/8" I.D. 4-1/8" long

1шт.

19

H148569

DRIVE SPROCKET

split, digging chain drive, set of 2

1шт.

20

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

8шт.

21

232-4616

LOCK NUT,3/8"-24, GC

8шт.

22

D38248

SNAP RING,#187, Ext

drive shaft, outer, left hand #187, Ext

1шт.

23

H551523

AUGER

dirt

1шт.

24

H170241

HARDWARE

U-BOLT - auger retaining

1шт.

25

232-41110

NUT,5/8"-11, GC

2шт.

107029A1

PIVOT ASSY.

complete, boom mounting, P.I.N.JAF0104026 and after, Incl. Ref. 26 - 33

1шт.

26

H749283

SEAL

grease

1шт.

27

H748228

BEARING, NEEDLE

pivot

1шт.

107028A1

PIVOT ASSY.

Incl. sleeve, boom mounting, Incl. Ref. 28 and 29

1шт.

28

H140319

HOUSING

PIVOT - boom

1шт.

29

H438317

SLEEVE

pivot

1шт.

30

H150169

WASHER

thrust, pivot

1шт.

31

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

pivot

2шт.

32

H759104

OIL SEAL

grease

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

34

238-6151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 6, 90 Duro

1шт.

35

238-6239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 6, 90 Duro

1шт.
