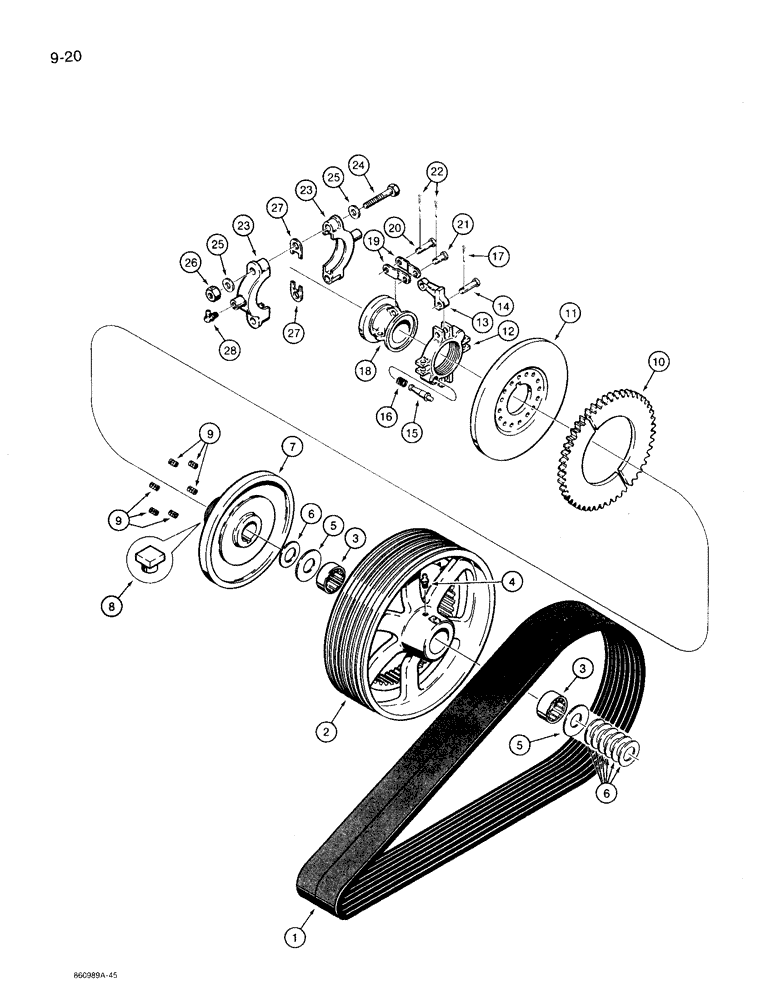

Запчасти Case 360 (9-020) - TRENCHER DRIVE BELT AND CLUTCH (09) - CHASSIS/ATTACHMENTS

1

H185579

SET OF BELTS

2, Belt, Drive

1шт.

2

H273334

SHEAVE

driven, clutch

1шт.

3

H756684

ROLLER BEARING

SEAL - sheave

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

H362541

WASHER

thrust, 1-13/32 ID x 2-3/4 inch OD

2шт.

For installation on #5 & #6 use the following info:

1шт.

Prior to 1987 it could have 6 on the bearing side and 1 on the clutch side.

1шт.

After 1987, the diesel had 1 on each side and the gas had 3 on the bearing side and 1 on the clutch side.

1шт.

If in doubt, reinstall same number as you disassembled.

1шт.

Quantity and arrangement of Ref. 5 and 6 will vary due to production year and also will be different for diesel vs gas models. Reinstall same number and arrangement as in the disassembly

1шт.

6

H34579

WASHER

thrust, 1-3/8 ID x 2-3/8 inch OD

7шт.

For installation on #5 & #6 use the following info:

1шт.

Prior to 1987 it could have 6 on the bearing side and 1 on the clutch side.

1шт.

After 1987, the diesel had 1 on each side and the gas had 3 on the bearing side and 1 on the clutch side.

1шт.

If in doubt, reinstall same number as you disassembled.

1шт.

Quantity and arrangement of Ref. 5 and 6 will vary due to production year and also will be different for diesel vs gas models. Reinstall same number and arrangement as in the disassembly

1шт.

H546812

CLUTCH

trencher, Incl. Ref. 7 - 27

1шт.

7

H547323

PLATE ASSY.

HUB AND BACK PLATE - clutch

1шт.

8

H111161

AXLE PIN

hub, hub

1шт.

9

H111260

VALVE SPRING

releasing, clutch

6шт.

10

H111245

PLATE

driving, driving, clutch, set of 2

1шт.

11

H111252

PLATE ASSY.

floating, clutch

1шт.

H529362

YOKE

UNIVERSAL JOINT YOKE adjusting, Incl. Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE - adjusting

1шт.

13

H111179

LEVER

yoke

4шт.

14

H111187

AXLE PIN

clevis, finger

4шт.

15

H111195

AXLE PIN

adjusting lock, adjusting lock

1шт.

16

A26944

VALVE SPRING

adjusting lock pin

1шт.

17

A43382

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 x 1/2 inch long, special, pin retaining

4шт.

H547315

SLEEVE CYLINDER

sliding, Incl. Ref. 18 - 22

1шт.

18

B50846

SLEEVE

sliding

1шт.

19

F11937

DRAG LINK

finger

8шт.

20

H111229

AXLE PIN

clevis, Serial Range: link-sleeve

4шт.

21

F11938

AXLE PIN

clevis, Serial Range: link-finger

4шт.

22

A43382

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 x 1/2 inch long, special, pin retaining

8шт.

A31140

COLLAR

clutch sleeve, Incl. Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR - sleeve

2шт.

24

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

hex, 3/8 NF x 1-3/4 inch

2шт.

25

D48341

WASHER

4шт.

26

131-1103

LOCK NUT,3/8"-24, GA

NUT, LOCK, 3/8"-24, GA

2шт.

27

NSS

NOT SOLD SEPARAT

SPACER - collar

1шт.

REF # 27 = THE SHIMS ARE NO LONGER INCLUDED IN A31140 COLLAR ASSEMBLY...TWIN DISC HAS CHANGED DESIGN AND IT DOES NOT NEED SHIMS...PER DONNA @ TWIN DISC...

1шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.
