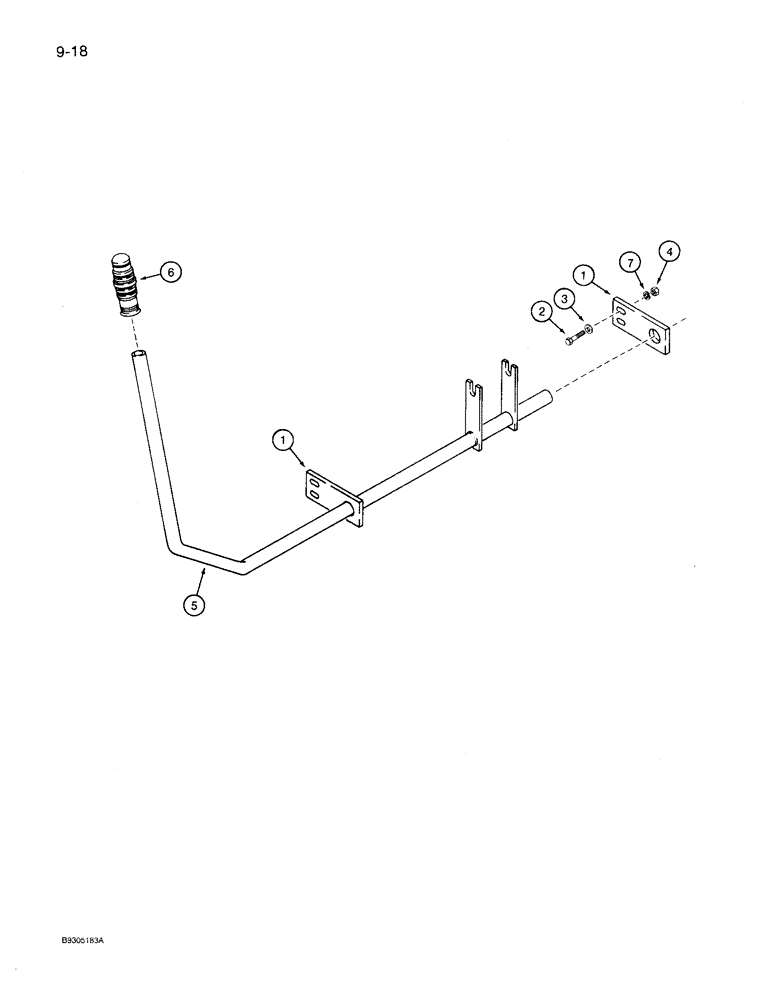

Запчасти Case 360 (9-018) - TRENCHER CLUTCH CONTROL LEVER (09) - CHASSIS/ATTACHMENTS

1

H430819

LARGE PLATE

PLATE, LARGE mounting, lever shaft, bearing, attaches to chassis, at clutch lever shaft end and at ground drive pump mounting

2шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

If used

4шт.

4

232-4116

NUT,3/8"-16, GC

If used

2-4шт.

5

H671693

LEVER

clutch control, models without neutral start switch

1шт.

5a

178267A1

LEVER

clutch control, models with neutral start switch

1шт.

6

H33332

GRIP

handle, lever

1шт.

7

492-11038

LOCK WASHER,3/8"

If used

2шт.

8

178265A1

BRACKET

mounting, neutral start switch

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

10

H346650

NUT

U-type, 5/16 inch NC

2шт.

11

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

12

H435814

U-BOLT

mounting, Serial Range: switch-bracket

1шт.

13

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.
