(9-016) - TRENCHER BOOM LIFT CONTROL

Запчасти Case 360 (9-016) - TRENCHER BOOM LIFT CONTROL (09) - CHASSIS/ATTACHMENTS

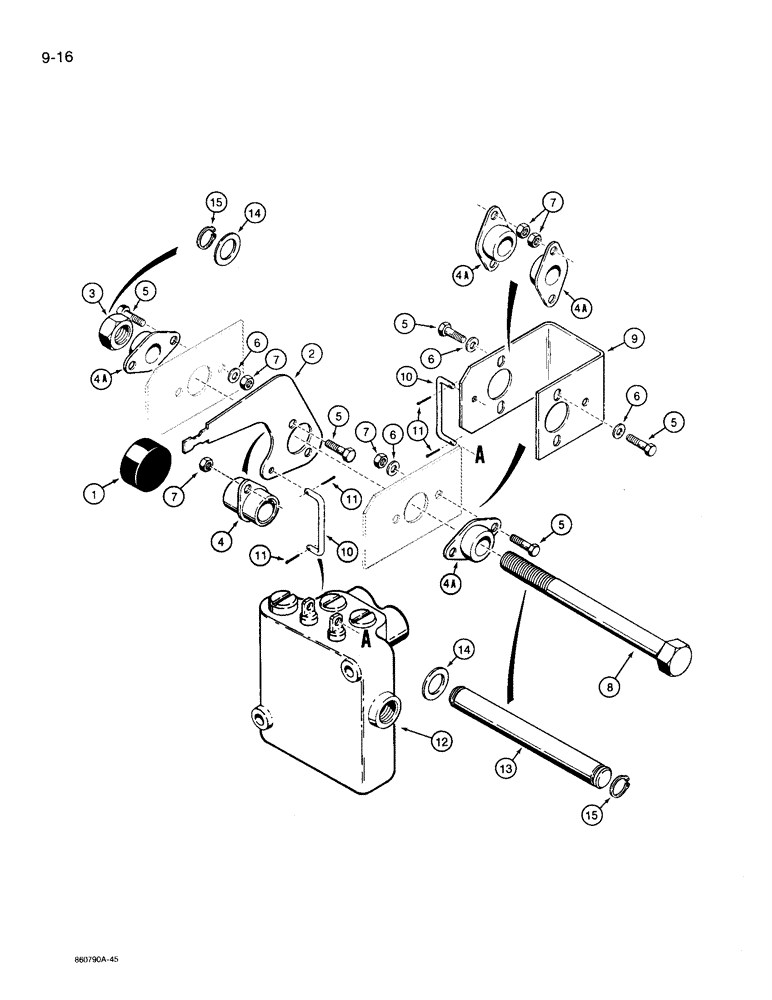

Схема запчастей Case 360 - (9-016) - TRENCHER BOOM LIFT CONTROL (09) - CHASSIS/ATTACHMENTS
14
6
6
11
5
1
15
5
8
10
4a
10
11
11
4a
7
14
12
7
13
4a
5
4
15
9
2
7
5
7
3
6
5
6
4a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A177435

BALL KNOB

lever

1шт.

2

H433000

HANDLE

control, trencher boom lift

1шт.

3

232-41110

NUT,5/8"-11, GC

No longer used, Replace with Ref. 13, 14, and 15

1шт.

4

A162299

BEARING,15.95mm ID

flange, inner

1шт.

4

H755785

FLANGED BEARING,15.88mm ID

flange, outer

4шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

7

232-4114

LOCK NUT,1/4"-20, GC

10шт.

8

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8 NC x 7 inch, no longer used, replace with Ref. 13, 14, and 15

1шт.

9

H432971

CHANNEL

mounting, control lever

1шт.

10

H432955

LINKAGE

control, Serial Range: lever,-spool

2шт.

11

432-412

COTTER PIN,1/16" x 3/4"

4шт.

12

H656454

VALVE

control, steering and trencher boom lift, parts list Fig. 5-22, no longer available, order H674732

1шт.

12

H674732

SLIDE VALVE

control, steering and trencher boom lift, parts list Fig. 5-23A

1шт.

13

H434680

PIN

pivot, trencher boom lift control lever, replaces Ref. 3 nut and Ref. 8 bolt used on some models

1шт.

14

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch, replaces T53567

2шт.

15

100-1162

SNAP RING,#62, Ext

Pivot pin

2шт.
