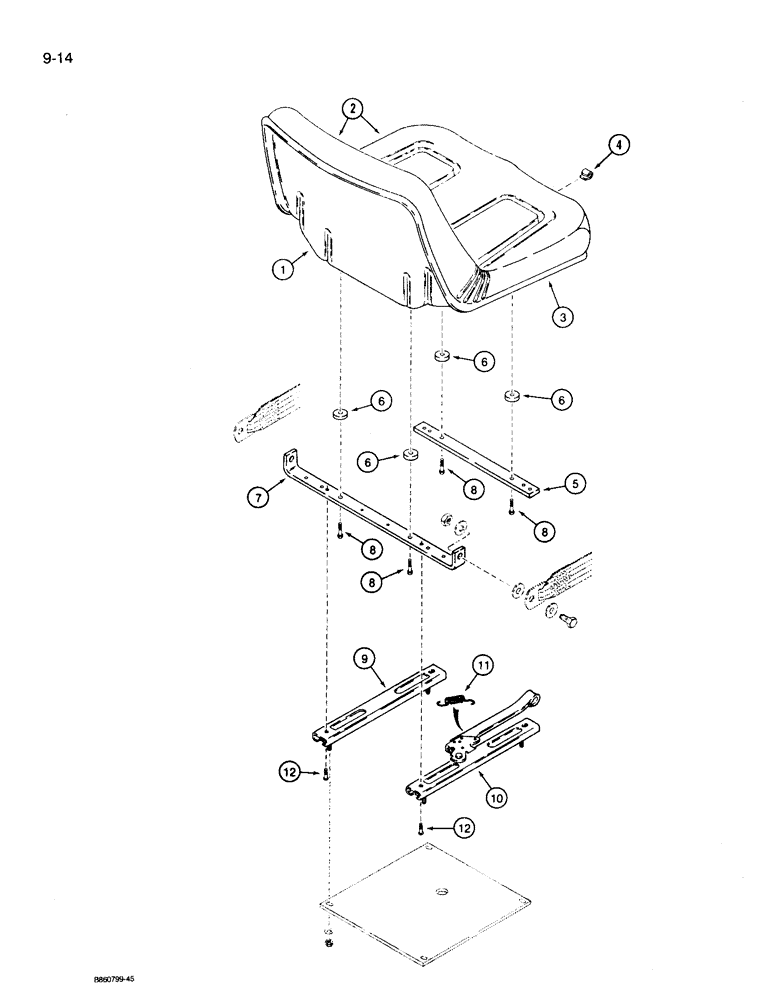

Запчасти Case 360 (9-014) - OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

H672324

SEAT

operators, brown models

1шт.

179331A1

SEAT

operators, with hole for interlock switch, gray models

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat pan

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - seat, H672324 seat, brown vinyl

1шт.

2a

220713A1

CUSHION

seat, 179331A1 seat, gray vinyl

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - seat

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - seat trim

1шт.

5

N13978

BAR

seat belt

1шт.

6

N8543

SPACER

nylon

4шт.

7

103267A1

BAR

seat belt

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

9

N13979

ADJUSTER

left-hand, without handle

1шт.

N13980

ADJUSTER

right-hand, with handle

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - right-hand

1шт.

11

N8544

SPRING

return, handle

1шт.

12

187-1157

SELF-TAP SCREW,Cross Pan Hd, 5/16"-18 x 5/8"

self-tapping, pan head Phillips, 5/16 NC x 5/8 inch

4шт.

13

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.
