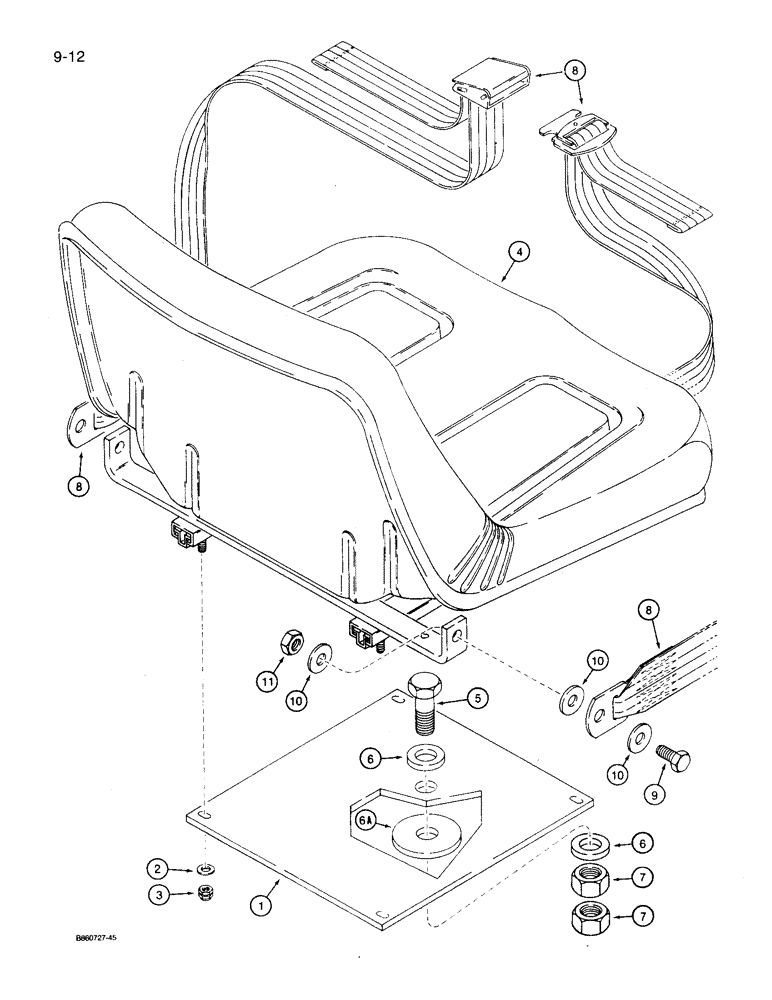

Запчасти Case 360 (9-012) - SEAT AND SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H437859

LARGE PLATE

PLATE, LARGE seat mounting, models without seat interlock system, replaces H426353

1шт.

1a

182326A1

PLATE

seat mounting, models with seat interlock system (swivel stop pin welded to plate) not shown; Gray

1шт.

2

H426775

WASHER

flat, special, hardened, hardened

4шт.

3

232-4115

LOCK NUT,5/16"-18, GC

4шт.

4

H672324

SEAT

operators, see parts list Fig. 9-14

1шт.

5

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

1шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, hardened

2шт.

6

495-81003

WASHER,0.81" ID x 2.88" OD x 0.17" Thk

flat, 13/16 x 2-7/8 x 5/32 inch

1шт.

7

232-4118

NUT,1/2"-13, GC

2шт.

8

D75997

SAFETY BELT ,1.80" W

1шт.

9

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

If used

2шт.

10

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

6шт.

11

232-4117

LOCK NUT,7/16"-14, GC

2шт.
