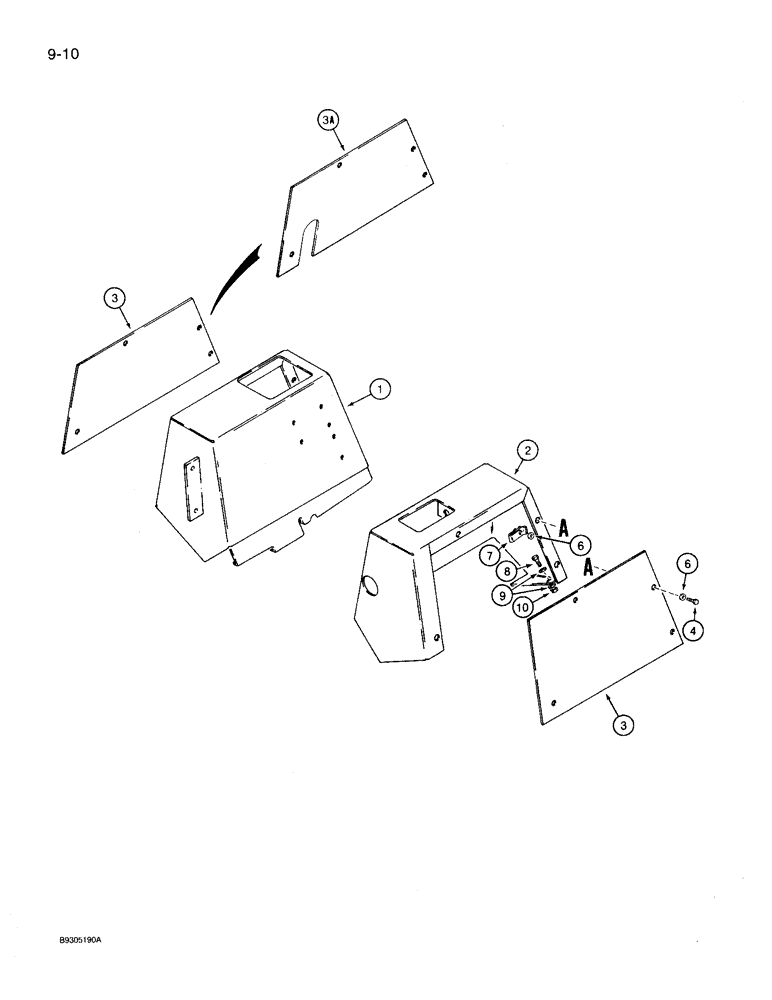

Запчасти Case 360 (9-010) - REAR CONSOLES (09) - CHASSIS/ATTACHMENTS

1

H671644

CONSOLE

directional, and creep control

1шт.

2

H671651

CONSOLE

backfill control

1шт.

3

H433009

COVER

console, left-hand and right-hand sides

1-2шт.

3

H433998

COVER

console, left-hand side, used on models with rear attachment auxiliary hydraulics

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

REF; 4 & 8 IF MACHINE HAS 5/16"-18 X 1 1/4 BOLT THE NUMBER IS 413-520

1шт.

6

H426775

WASHER

flat, special, hardened, hardened

16шт.

7

H346650

NUT

U-type, 5/16 inch NC

8шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

REF; 4 & 8 IF MACHINE HAS 5/16"-18 X 1 1/4 BOLT THE NUMBER IS 413-520

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

16шт.

10

232-4116

NUT,3/8"-16, GC

8шт.
