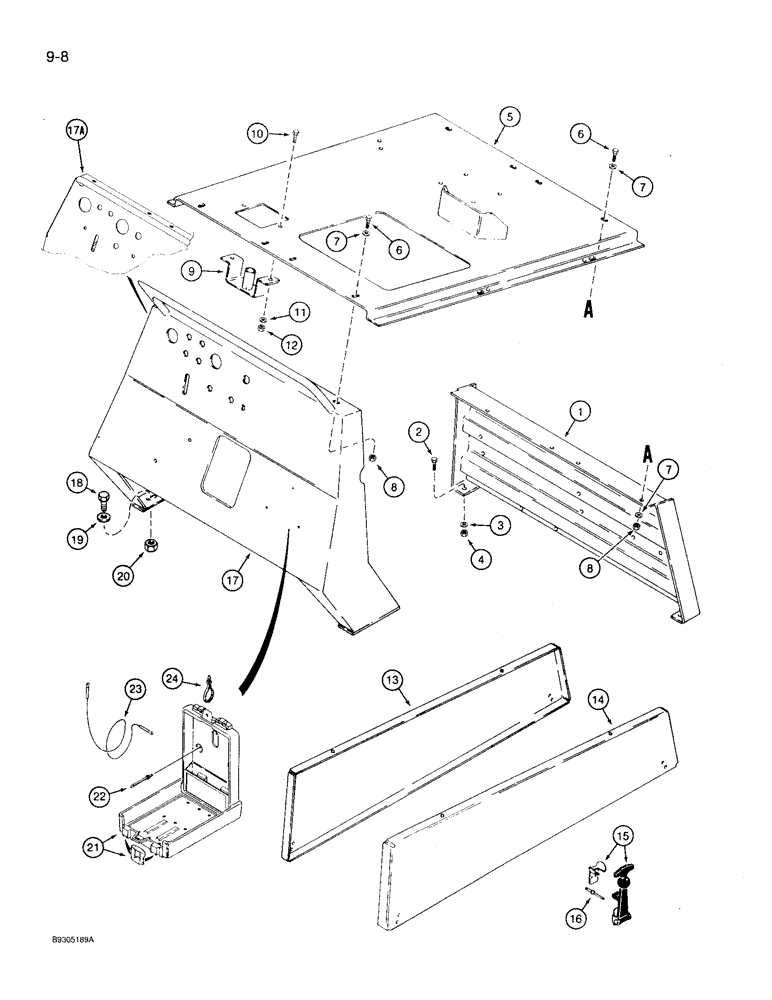

Запчасти Case 360 (9-008) - HOOD, GRILLE, SIDE PANELS, AND FRONT CONSOLE - WISCONSIN GASOLINE ENGINE MODELS (09) - CHASSIS/ATTACHMENTS

1

H670901

RISER

hood riser

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

H426775

WASHER

flat, special, hardened

2шт.

4

232-4115

LOCK NUT,5/16"-18, GC

2шт.

5

H672567

HOOD

engine compartment

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

7

H426775

WASHER

flat, special, hardened

12шт.

8

232-4115

LOCK NUT,5/16"-18, GC

8шт.

9

H672241

BRACKET

oil fill

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

11

H426775

WASHER

flat, special, hardened

2шт.

12

232-4115

LOCK NUT,5/16"-18, GC

2шт.

13

H671685

PANEL

side, left-hand

1шт.

14

H671677

PANEL

side, right-hand

1шт.

15

H628263

LATCH ASSY.

side panels

4шт.

16

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

16шт.

17

H671636

CONSOLE

front, prior to P.I.N. JAF0104134

1шт.

17a

115525A1

BRACKET

CONSOLE - front, P.I.N. JAF0104134 and after, no longer available, order 184801A1 console, Ref. 17B, and 182209A1 decal, Ref. 15C, Fig. 9-138

1шт.

17b

184801A1

CONSOLE

front, not shown; Also Order Decal 182209A1

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

19

H274894

WASHER

flat, special

4шт.

20

232-4118

NUT,1/2"-13, GC

4шт.

21

R46464

CASE

operators manual

1шт.

22

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 17/32 inch, manual box retaining

3шт.

23

D126821

CABLE

manual retaining

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

SEE PG 4-19 FOR BRACKET & LIGHT ASSY FOR NEUTRAL START SWITCH

1шт.
