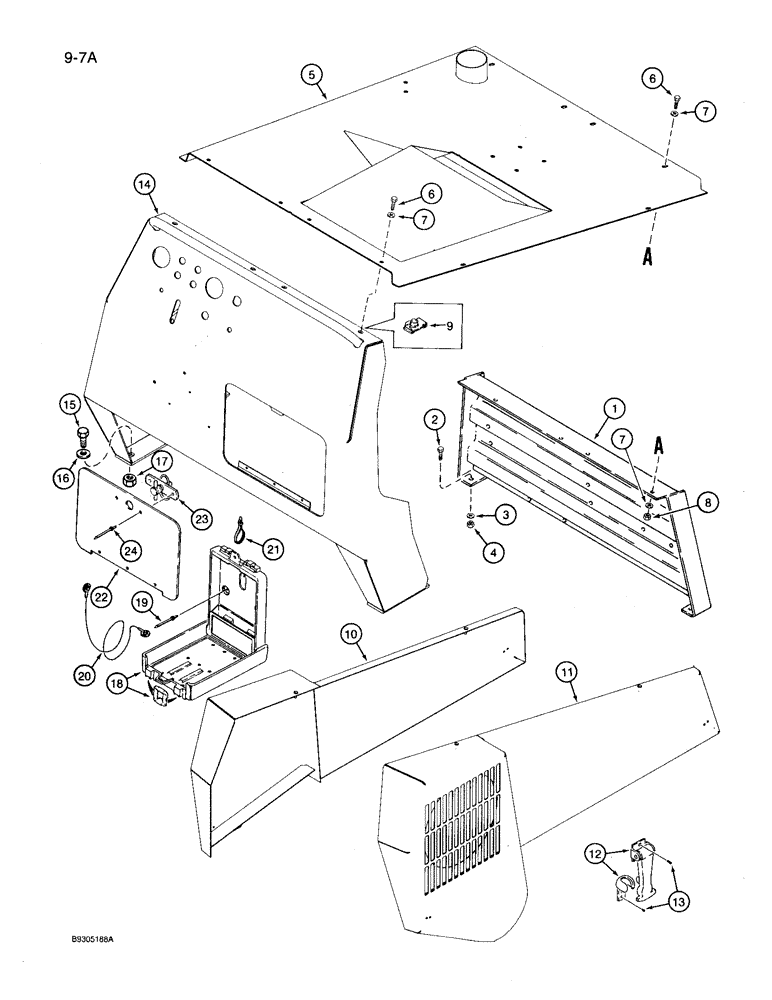

Запчасти Case 360 (9-007A) - HOOD, GRILLE, SIDE PANELS, AND FRONT CONSOLE - DEUTZ DIESEL ENGINE MODELS P.I.N. JAF0104257 & AFTER (09) - CHASSIS/ATTACHMENTS

1

H670901

RISER

hood riser

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

H426775

WASHER

flat, special, hardened

2шт.

4

232-4115

LOCK NUT,5/16"-18, GC

2шт.

5

121048A1

HOOD

engine compartment

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

7

H426775

WASHER

flat, special, hardened

12шт.

8

232-4115

LOCK NUT,5/16"-18, GC

4шт.

9

H346650

NUT

U-type, 5/16 inch NC

2шт.

10

121050A1

PANEL

side, left-hand

1шт.

11

121049A1

PANEL

side, right-hand

1шт.

12

H672204

HOOD

LATCH

4шт.

13

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

16шт.

14

121030A1

BRACKET

CONSOLE - front, no longer available, order 179031A1 console, Ref. 14A, and 178928A1 decal, Ref. 15A, Fig. 9-138

1шт.

14a

179031A1

CONSOLE

front, not shown; Also Order Decal 178928A1

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

16

H274894

WASHER

flat, special

4шт.

17

232-4118

NUT,1/2"-13, GC

4шт.

18

R46464

CASE

operators manual

1шт.

19

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 17/32 inch

3шт.

20

D126821

CABLE

manual retaining

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

22

121031A1

COVER

console, lower

1шт.

23

L102515

LATCH

console cover

1шт.

24

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

5шт.

AIR BAFFLE SHOWN ON PREVIOUS PAGE FOR EARLIER SERIAL NUMBER UNITS IS SUPPLIED BY DUETZ ON THESE LATER SERIAL NUMBER MACHINES.

1шт.
