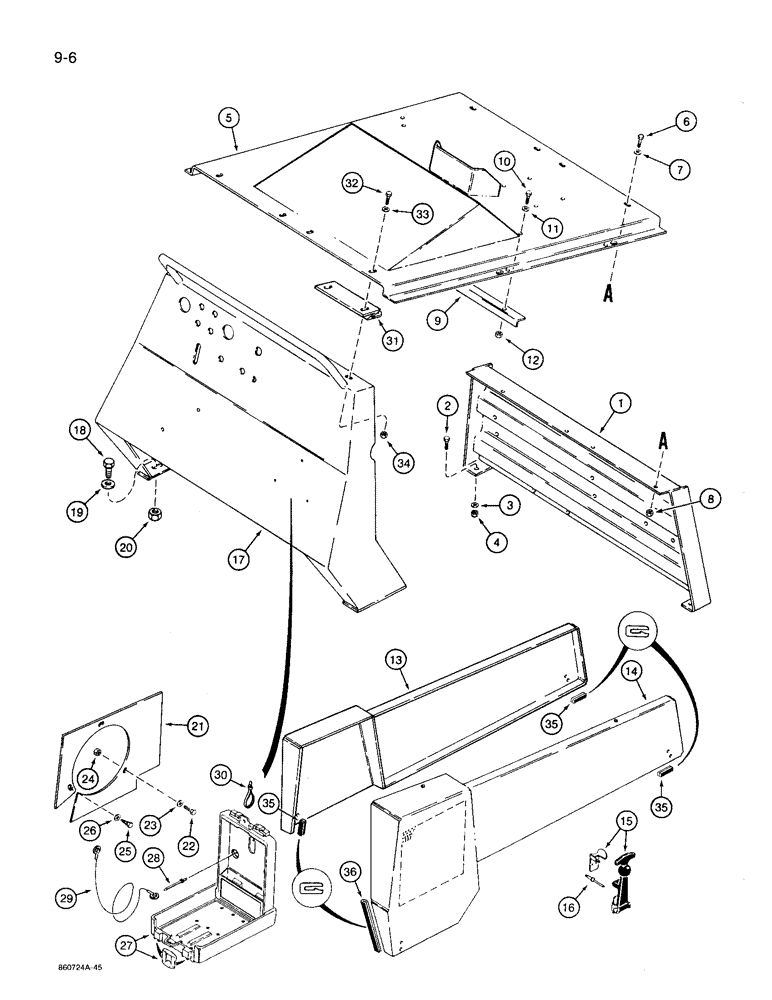

Запчасти Case 360 (9-006) - HOOD, GRILLE, SIDE PANELS, AND FRONT CONSOLE - DEUTZ DIESEL ENGINE MODELS PRIOR TO P.I.N. JAF0104257 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H670901
RISER
hood riser
1шт.
2
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
3
H426775
WASHER
flat, special, hardened, hardened
2шт.
4
232-4115
LOCK NUT,5/16"-18, GC
2шт.
5
H672161
HOOD
engine compartment
1шт.
6
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
7
H426775
WASHER
flat, special, hardened, hardened
8шт.
8
232-4115
LOCK NUT,5/16"-18, GC
8шт.
9
H433433
ANGLE
hood
1шт.
10
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
11
H426775
WASHER
flat, special, hardened, hardened
4шт.
12
232-4115
LOCK NUT,5/16"-18, GC
4шт.
13
H673226
PANEL
left-hand side
1шт.
14
H672155
PANEL
right-hand side
1шт.
15
H628263
LATCH ASSY.
4шт.
16
151-558
RIVET,Pop, 3/16" x .450"
break mandrel, 3/16 x 1/2 inch
16шт.
17
H672160
CONSOLE
front, prior to P.I.N. JAF0104134
1шт.
17
115524A1
BRACKET
CONSOLE, front, not shown, P.I.N. JAF0104134 through JAF0104256
1шт.
18
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
4шт.
19
H274894
WASHER
flat, special, special
4шт.
20
232-4118
NUT,1/2"-13, GC
4шт.
21
H434288
BAFFLE
air
1шт.
22
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
3шт.
23
H426767
WASHER
flat, 9/32 x 5/8 x 3/64 inch, hardened
3шт.
24
232-4114
LOCK NUT,1/4"-20, GC
3шт.
25
276-24816
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
self-tapping, hex head, 5/16 NC x 1 inch, self-tapping
1шт.
26
H426775
WASHER
flat, special, hardened, hardened
1шт.
27
R46464
CASE
operators manual
1шт.
28
151-522
RIVET,Pop, 3/16" x .575"
break mandrel, 3/16 x 17/32 inch, manual box retaining
3шт.
29
D126821
CABLE
manual retaining
1шт.
30
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
1шт.
31
H434704
BRACKET
hood, if used
1шт.
32
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
hex, 5/16 NC x 1-1/4 inch, if used
2шт.
33
H426775
WASHER
flat, special, hardened, hardened, if used
4шт.
34
232-4115
LOCK NUT,5/16"-18, GC
If used
2шт.
35
H434708
TERMINAL STRIP
contact, 2 inch (50 mm) long, if used
3шт.
36
H434709
TERMINAL STRIP
contact, 7-7/8 inch (200 mm) long, if used
1шт.
Выбрано товаров: 37
