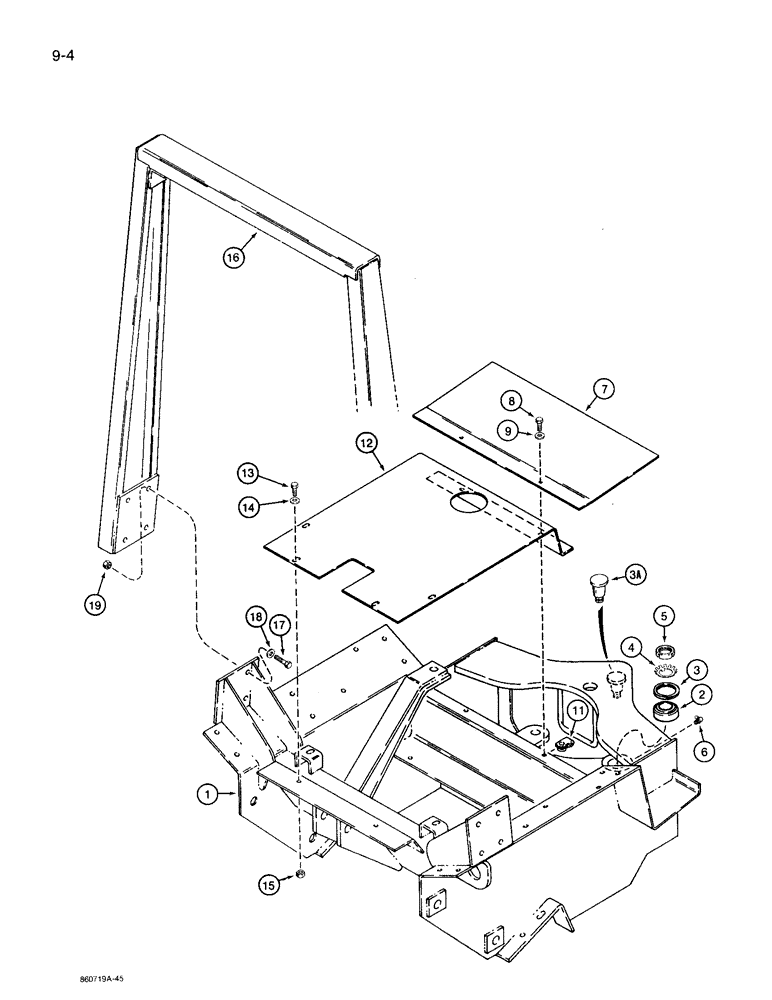

Запчасти Case 360 (9-004) - REAR FRAME, FLOOR PLATES, AND ROPS (09) - CHASSIS/ATTACHMENTS

1

H670844

CHASSIS

FRAME ASSEMBLY - rear, Incl. Ref. 2 - 3A

1шт.

REF #1 H670844 - WHEN DEALER WANTS TO REPLACE THE LOWER PIVOT POINT BUSHING BOSS AND PLATE THEY SHOULD ORDER H657452. THE NUMBER IS GOOD IN G.P.N.

1шт.

2

H404079

BUSHING

1-1/4 (32) ID x 2-7/16 inch (62 mm) OD, lower pivot point

1шт.

3

H406439

RING

retaining, bushing

1шт.

3a

H434983

STUD

frame pivot, Serial Range: welded-frame

1шт.

4

192-305

BEARING WASHER,Type W-05

bearing SAE No. W-05

1шт.

5

131-1005

BEARING LOCK NUT,Bearing, .9843" Bore

bearing lock, N-05

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

7

H433201

LARGE PLATE

PLATE, LARGE floor, front

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

REF; 8 & 13 IF MACHINE HAS A 5/16" -18 X 1 1/4

1шт.

9

H426775

WASHER

flat, special, hardened, hardened

2шт.

11

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

12

H430363

LARGE PLATE

PLATE, LARGE floor, rear

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

REF; 8 & 13 IF MACHINE HAS A 5/16" -18 X 1 1/4

1шт.

14

H426775

WASHER

flat, special, hardened, hardened

2шт.

15

232-4116

NUT,3/8"-16, GC

2шт.

16

H939118

ROPS - two post, order from Machinery Price List, brown

1шт.

16

189613A1

ROPS - two post, order from Machinery Price List, gray

1шт.

17

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

18

H274894

WASHER

flat, special

8шт.

19

232-4118

NUT,1/2"-13, GC

8шт.

BOLT THE NUMBER IS 413-520.

1шт.

UPPER PLATE IS H424093

1шт.
