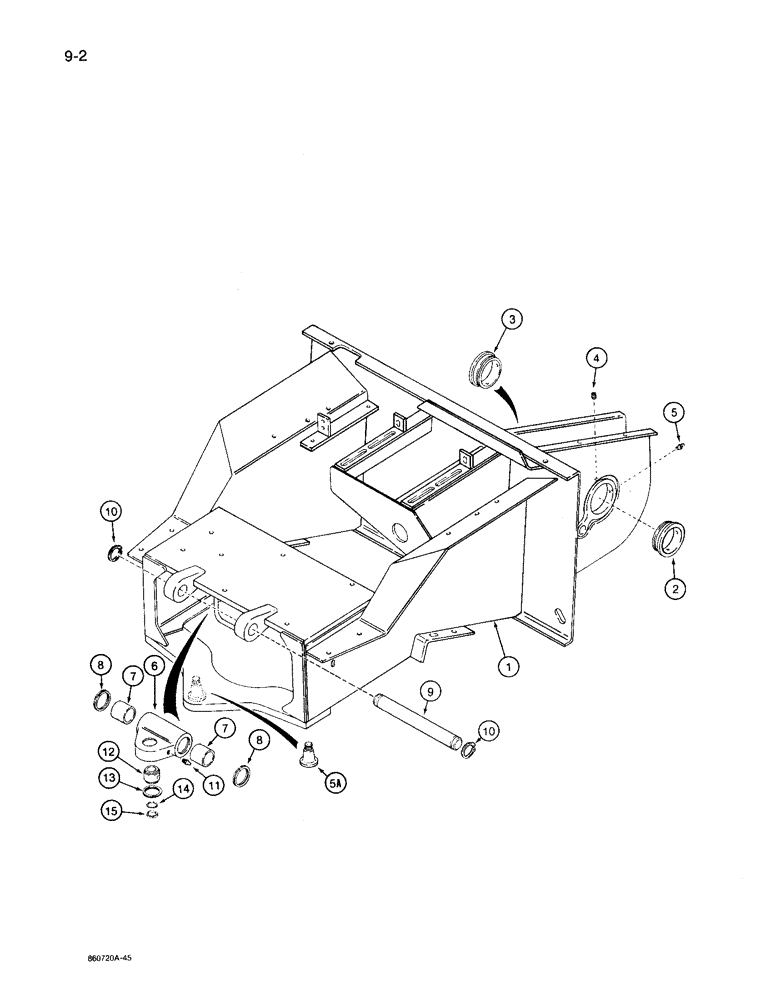

Запчасти Case 360 (9-002) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

H670448

FRAME

front, Incl. Ref. 2 - 5A

1шт.

Ref #1&2, bushings are retained by set screw ref #4. drill & tap bushings to accept set screw.

1шт.

2

H150201

BUSHING

BUSHING - 3" (76 mm) ID

1шт.

EFFECTIVE SERIAL# JAF0104026 AND AFTER REF 2 AND 3 BUSHINGS CHANGE TO H438985 AND H438986. SEE BLTN NTC SB 008 92 FOR DETAILS.

1шт.

Ref #1&2, bushings are retained by set screw ref #4. drill & tap bushings to accept set screw.

1шт.

3

H150193

BUSHING

3-3/8" (86 mm) ID

1шт.

EFFECTIVE SERIAL# JAF0104026 AND AFTER REF 2 AND 3 BUSHINGS CHANGE TO H438985 AND H438986. SEE BLTN NTC SB 008 92 FOR DETAILS.

1шт.

4

83-48

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

set, hex socket, cup point, 1/4" - 20 NC x 1/2"

2шт.

Ref #1&2, bushings are retained by set screw ref #4. drill & tap bushings to accept set screw.

1шт.

5

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

2шт.

5a

H434983

STUD

pivot, frame, Serial Range: welded-frame

1шт.

Ref. # 5A == the plate that this is welded onto is H405969... must do weldment request

1шт.

6

H407114

LINK

upper pivot point

1шт.

7

H407122

BUSHING

2" (51 mm) ID x 2-1/4" (57 mm) OD x 2" (51 mm) long, link

2шт.

8

H407130

OIL SEAL

retaining, bushing

2шт.

9

H407106

PIN

SHAFT - link

1шт.

10

D23191

SNAP RING,#200, Ext

pin retaining

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

H404079

BUSHING

1-1/4" (32 mm) ID x 2-7/16" (62 mm) OD, upper pivot point

1шт.

13

H406439

RING

retaining, bushing

1шт.

14

192-305

BEARING WASHER,Type W-05

bushing

1шт.

15

131-1005

BEARING LOCK NUT,Bearing, .9843" Bore

bushing

1шт.
