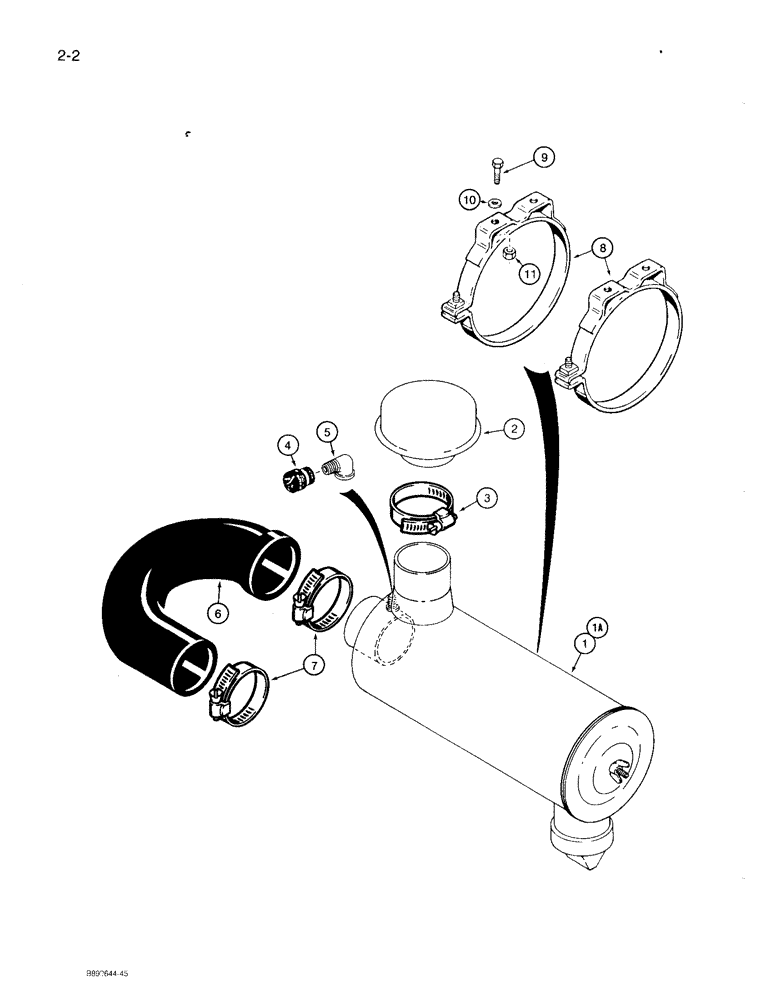

Запчасти Case 360 (2-02) - AIR CLEANER AND INTAKE - DEUTZ DIESEL ENGINE MODELS, PRIOR TO P.I.N. JAF0104257 (02) - ENGINE

1

H432054

AIR CLEANER

air, engine, parts list Fig. 2-6, no longer available, order Ref. 1A for service

1шт.

1a

H673627

AIR CLEANER

air, engine, parts list Fig. 2-8

1шт.

2

A61277

CAP

air cleaner

1шт.

3

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adj, 2-9/16 - 3-1/2 inch dia

1шт.

4

E77901

INDICATOR

air cleaner restriction

1шт.

5

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

6

H433439

INTAKE AIR HOSE,70.00 mm ID, 75.00 mm ID x 298.00 mm, SAE 20R4 CLASS D-2

air cleaner to engine

1шт.

7

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adj, 2-9/16 - 3-1/2 inch dia

2шт.

8

L113910

CLAMP

air cleaner mounting

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

11

131-1216

LOCK NUT,3/8"-16, GC

4шт.
