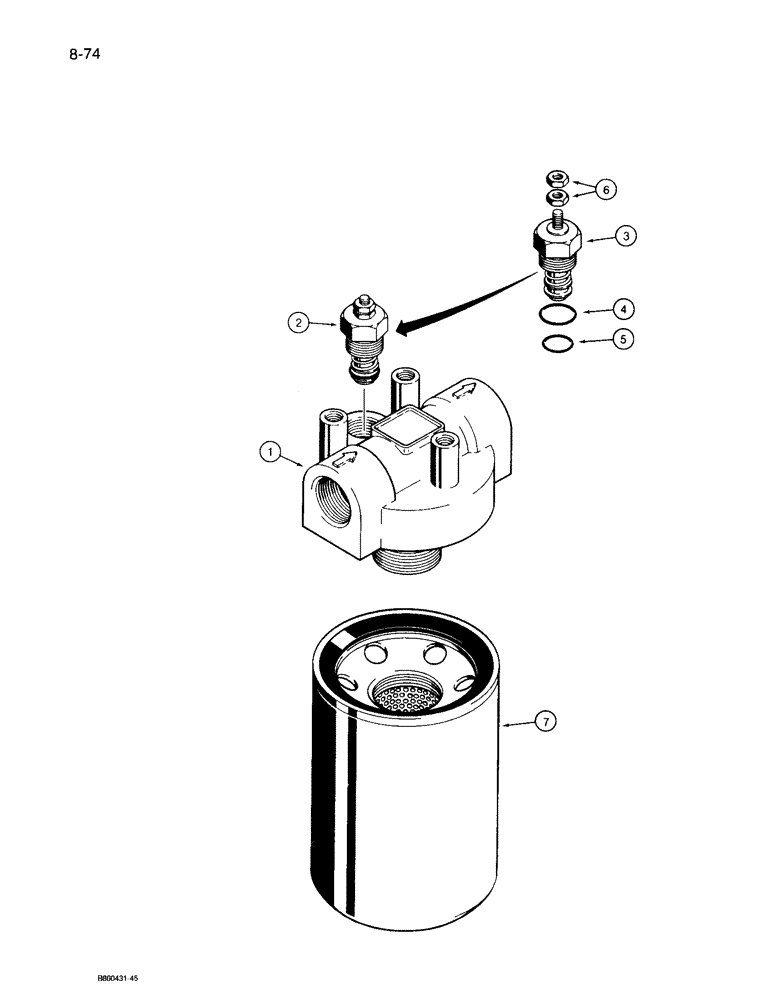

Запчасти Case 360 (8-74) - HYDRAULIC RETURN FILTER (08) - HYDRAULICS

H649277

FILTER ASSY

hydraulic oil, return, Incl. Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

N7782

TRANSMITTER

filter restriction indicator, Incl. Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - filter restriction indicator

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Switch seal, outer

1шт.

5

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

piston seal, inner

1шт.

6

129-17

NUT,Hex, #10 - 24

2шт.

7

H335620

HYDRAULIC OIL FILTER

ELEMENT

1шт.
