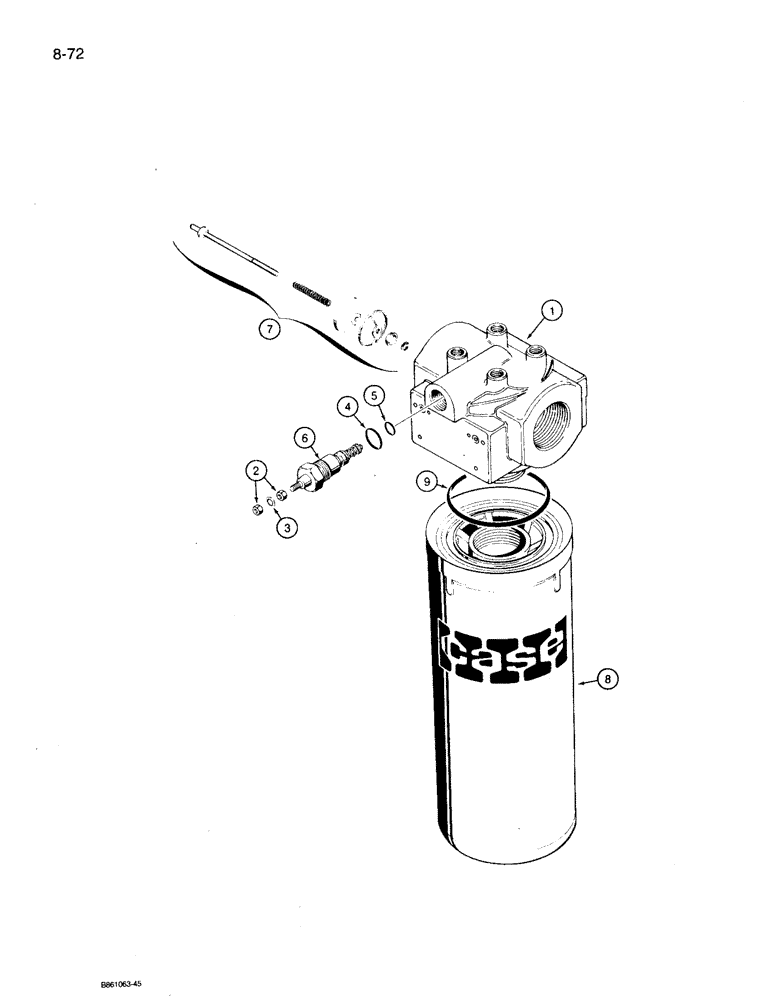

Запчасти Case 360 (8-72) - HYDRAULIC SUCTION FILTER (08) - HYDRAULICS

H672690

FILTER ASSY

hydraulic oil, suction, Incl. Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N9067

INDICATOR

RESTRICTION electric, Incl. Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

Incl. Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

, Serial Range: filter-head

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
