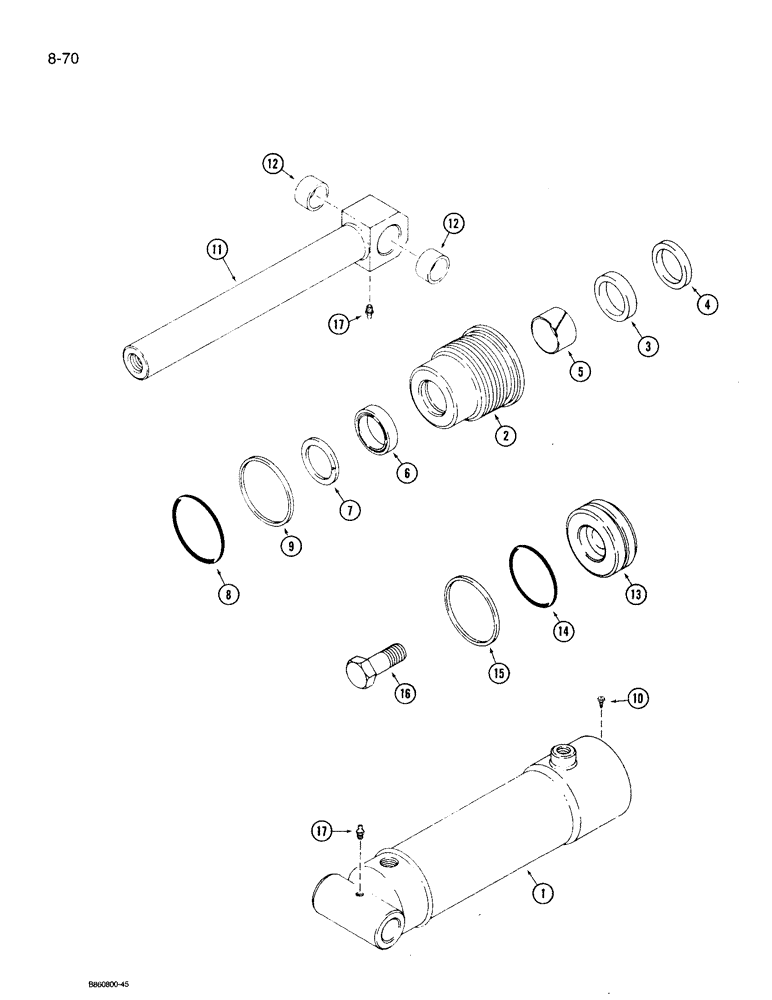

Запчасти Case 360 (8-70) - PLOW LIFT CYLINDER (08) - HYDRAULICS

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

3" (76 mm) ID x 7" (178 mm) stroke, plow lift, Incl. Ref. 1 - 17

2шт.

1

G32061

HYD TUBE,13.57" L

cylinder

1шт.

G104222

GLAND

cylinder, Incl. Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod; Part of Seal Kit, P/N G109418

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center; Part of Seal Kit, P/N G109418

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring; Part of Seal Kit, P/N G109418

1шт.

6

G100776

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, piston rod, narrow, with groove; Part of Seal Kit, P/N G109418

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland; Part of Seal Kit, P/N G109418

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring; Part of Seal Kit, P/N G109418

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

G33749

ROD

piston, 1-1/2" (38 mm) diameter, Incl. Ref. 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod

2шт.

13

G104108

PISTON

cylinder

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston seal; Part of Seal Kit, P/N G109418

1шт.

15

G32034

RING

backup, piston O-ring; Part of Seal Kit, P/N G109418

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G109418

GASKET KIT

Incl. Ref. 4, 5, 6 (except G100776), 7, 8, 9, 14, and 15, plus a wear ring not used in this cylinder

1шт.
