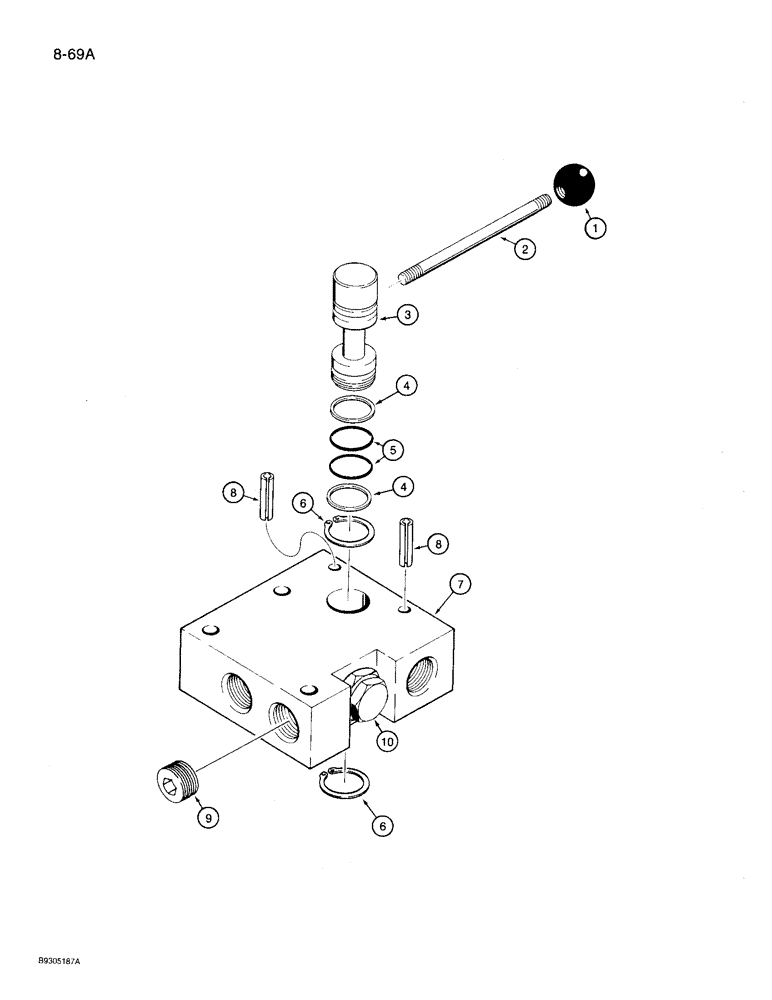

Запчасти Case 360 (8-69A) - PLOW AND REAR ATTACHMENT AUXILIARY HYDRAULICS - CONTROL VALVE (08) - HYDRAULICS

H675047

VALVE

control, one each used for plow and rear attachment auxiliary hydraulics options, Incl. Ref. 1 - 10

1-2шт.

1

113090A1

KNOB

handle

1шт.

Ref. 1 and 2 are replaced by Ref. 2 and 3 on Fig. 8-52 when control valve is used in the rear attachment auxiliary hydraulics application.

1шт.

2

113091A1

HANDLE

valve

1шт.

Ref. 1 and 2 are replaced by Ref. 2 and 3 on Fig. 8-52 when control valve is used in the rear attachment auxiliary hydraulics application.

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

198988A1

BACK-UP RING

7/8" I.D. 1.0" O.D. 1/16" wide (previously Ref. 239-5017, 11/16 x 13/16 inch)

2шт.

5

198990A1

O-RING,22.1mm ID x 1.6mm Width

.870" I.D. 1/16" wide(previously Ref. 238-6018, 3/4 ID x 1/16 inch wide )

2шт.

6

100-1198

SNAP RING,#98, Ext

Spool

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

8

138-2005

PIN,1/4" x 1", Coiled

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG - hex socket head, hollow

1шт.

10

113089A1

VALVE

relief, not shown

1шт.
