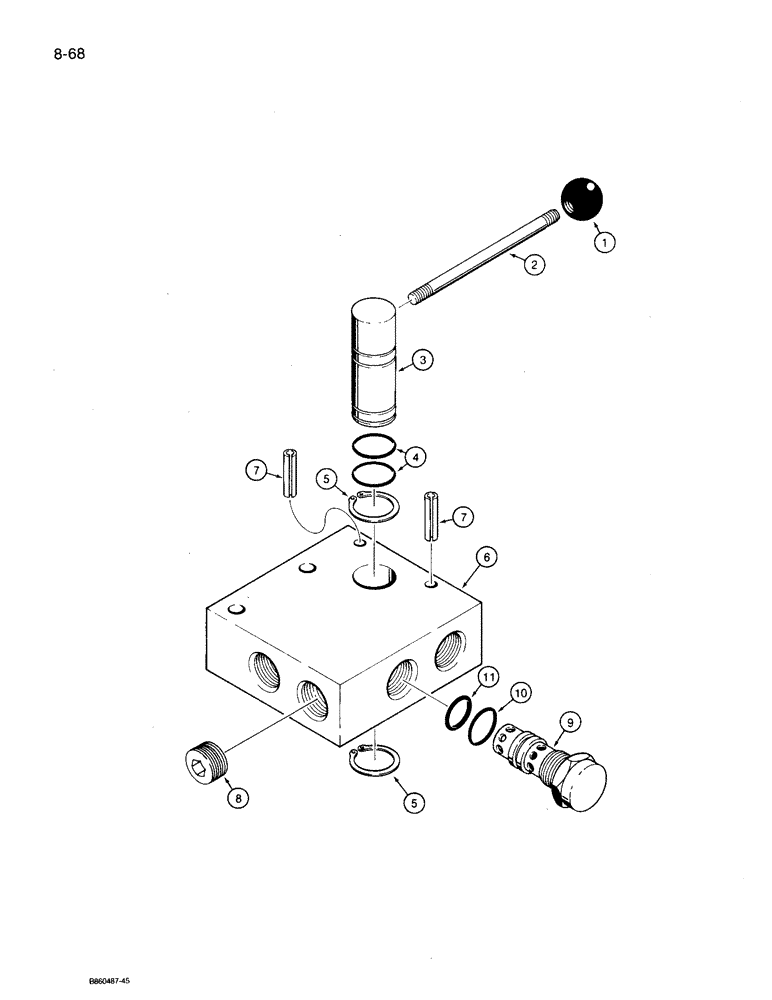

Запчасти Case 360 (8-68) - PLOW AND REAR ATTACHMENT AUXILIARY HYDRAULICS - CONTROL VALVE (08) - HYDRAULICS

H669168

VALVE

control, one each used for plow and rear attachment auxiliary hydraulics options, no longer used, for service order H672877 valve assembly

1-2шт.

H672877

VALVE

control, one each used for plow and rear attachment auxiliary hydraulics options, no longer used, for service order H675047 on Fig. 8-69A, Incl. Ref. 1 - 11

1-2шт.

1

H249839

KNOB

handle

1шт.

Ref. 1 and 2 are replaced by Ref. 2 and 3 on Fig. 8-52 when control valve is used in the rear attachment auxiliary hydraulics application.

1шт.

2

H249847

HANDLE

valve

1шт.

Ref. 1 and 2 are replaced by Ref. 2 and 3 on Fig. 8-52 when control valve is used in the rear attachment auxiliary hydraulics application.

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

spool seal

2шт.

5

F62020

SNAP RING,#125, Ext

spool #125, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

2шт.

8

221-841

PLUG

hex socket, 1/4 inch NPT

1шт.

9

N14660

LOCK VALVE

relief, H669168 or H672877 control valve, replaces H584326 relief in H669168 valve assembly, Incl. Ref. 10 and 11

1шт.

10

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

relief valve, large

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

relief valve, small

1шт.
