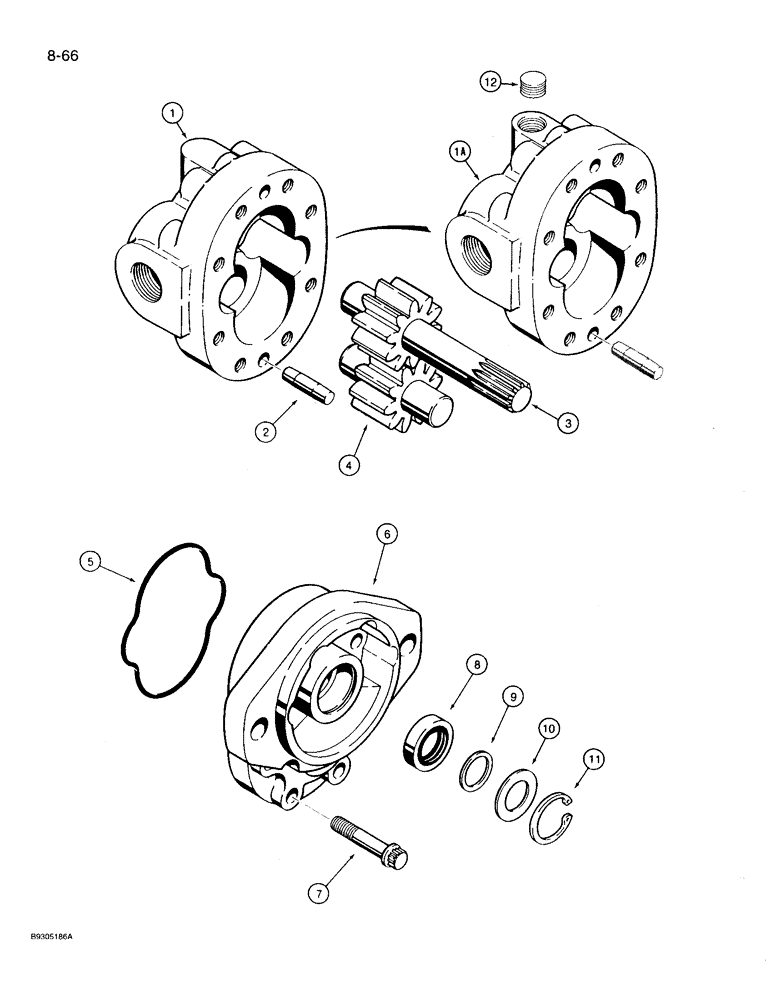

Запчасти Case 360 (8-66) - PLOW MOTOR (08) - HYDRAULICS

H672505

MOTOR

plow, no longer available, order H674539 motor

1шт.

H674539

MOTOR, HYDRAULIC

plow, Incl. Ref. 1 - 12

1шт.

1

N13692

HOUSING

port end, H672505 motor

1шт.

1a

100663A1

HOUSING

port end, H674539 motor

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

dowel, housing

2шт.

3

N13953

GEAR

drive, motor

1шт.

4

H656645

GEAR, IDLER

GEAR,IDLE driven, motor

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

1шт.

6

N13533

PLATE

output shaft end

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

12 point, 5/16 x 1-1/2 inch, grade 8

8шт.

8

N13691

SEAL

shaft, output

1шт.

9

H418004

WASHER

backup, no longer used, not required

1шт.

10

H94490

WASHER

special

1шт.

11

A36277

SNAP RING,1.125", Int, #112

Seal

1шт.

12

ZA551979

PLUG

pipe, H674539 motor, if used

1шт.
