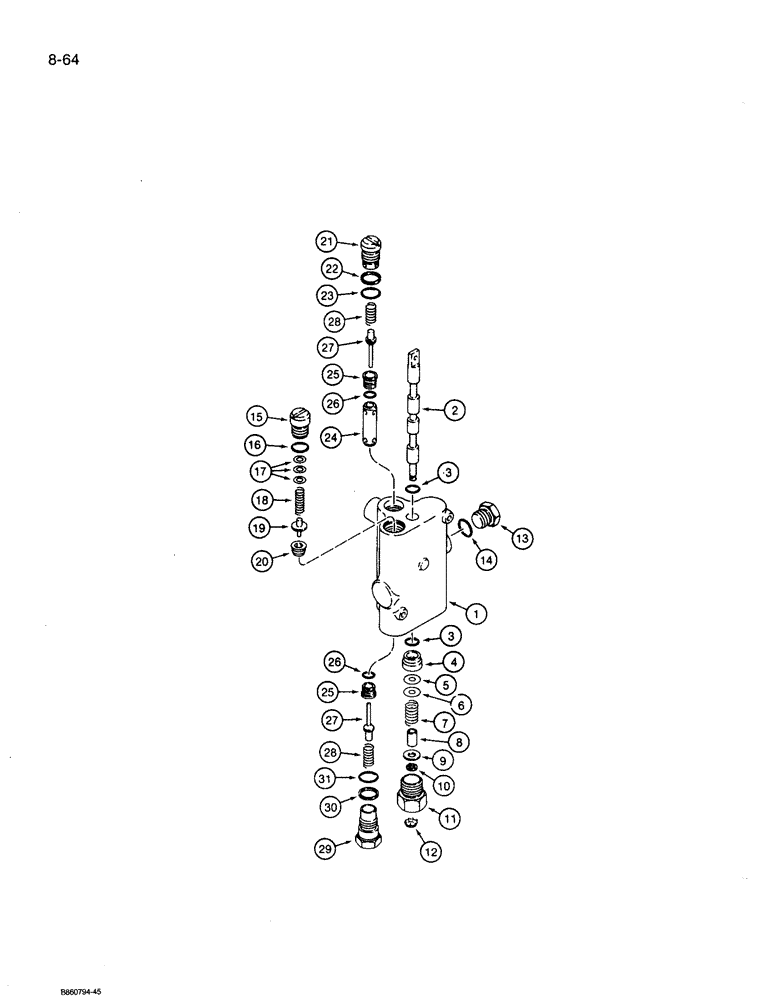

Запчасти Case 360 (8-64) - PLOW LIFT CONTROL VALVE - H657320 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H657320
VALVE
control, plow lift, one spool, no longer available, order H674731 valve, Fig. 8-65A, Incl. Ref. 1 - 31
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - plow lift
1шт.
3
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
spool
2шт.
4
F36304
BUSHING
spool
1шт.
5
H253062
WASHER
.046 inch (1.17 mm) thick
1шт.
6
H253054
WASHER
.020 inch (0.51 mm) thick, if required
1шт.
7
F36306
SPRING
centering, spool
1шт.
8
F36239
SPACER
spool
1шт.
9
F36908
WASHER
.065 inch (1.65 mm) thick
1шт.
10
H758367
RING
retaining, spool
1шт.
11
H375667
CAP
spool, end
1шт.
12
205-14
HOLE PLUG BUTTON,3/8"
button, 3/8 inch, end cap
1шт.
N9862
PLUG
hex, 3/4 inch NF, power beyond, Incl. Ref. 13 and 14
1шт.
13
NSS
NOT SOLD SEPARAT
PLUG - power beyond
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
plug
1шт.
F37892
PLUG
main relief valve, Incl. Ref. 13 and 14
1шт.
15
NSS
NOT SOLD SEPARAT
PLUG - main relief valve
1шт.
16
D48359
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
plug
1шт.
17
H746149
SHIM,.015" Thk
(0.38 mm)
1шт.
17
F12267
WASHER
SHIM - .010 inch (0.25 mm) thick
1шт.
17
H220798
SHIM,.035" Thk
(0.89 mm)
1шт.
18
L33609
SPRING
relief
1шт.
19
F37837
VALVE POPPET
1шт.
20
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
H636977
PLUG
load check, Incl. Ref. 21 and 22
1шт.
21
NSS
NOT SOLD SEPARAT
PLUG - load check
1шт.
22
G32626
RING
backup, plug O-ring
1шт.
23
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
24
F8229
PLUNGER
load check
1шт.
H636951
SEAT
poppet, load check, Incl. Ref. 25 and 26
2шт.
25
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
26
A18414
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro
seat
1шт.
27
F77048
VALVE POPPET
load check
2шт.
28
H364182
SPRING
load check
2шт.
H636969
FITTING
load check, port adapter, Incl. Ref. 29 - 31
1шт.
29
NSS
NOT SOLD SEPARAT
PLUG - port adapter
1шт.
30
G32626
RING
backup, plug O-ring
1шт.
31
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
Выбрано товаров: 39
