Запчасти Case 360 (8-62) - PLOW LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

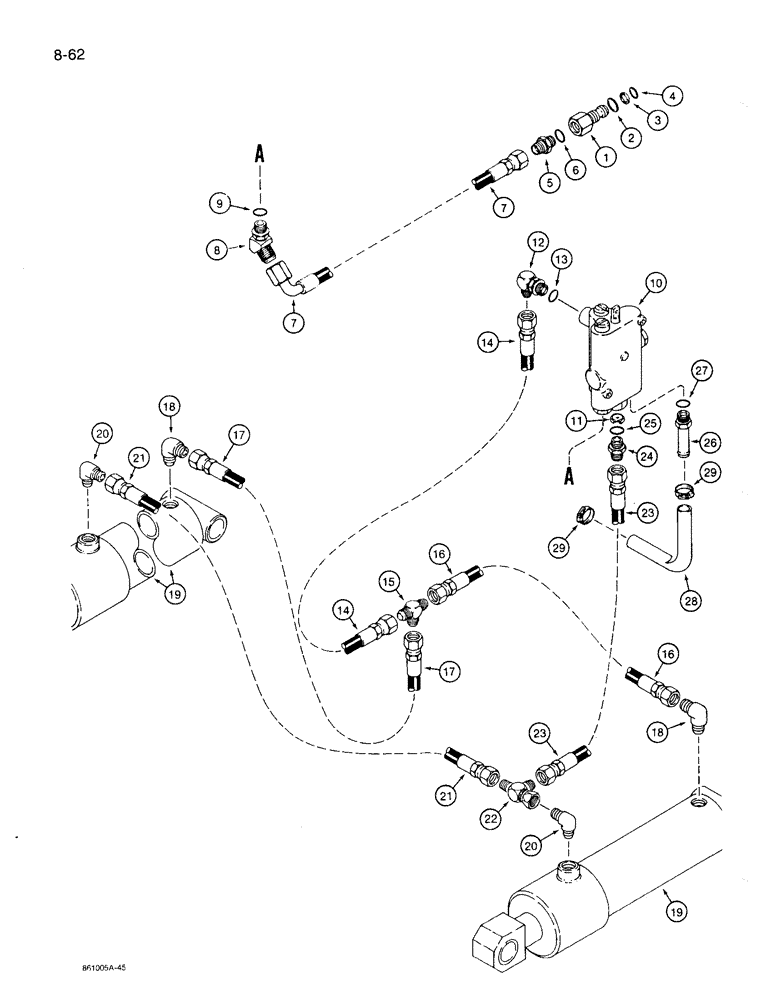

Схема запчастей Case 360 - (8-62) - PLOW LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS
4
13
6
18
7
28
29
2
19
16
14
25
10
8
1
21
21
19
17
7
12
18
26
16
9
11
23
17
14
24
20
29
23
27
5
20
3
15
22

Артикул

Название

Примечание

Количество

H347906

FITTING

power beyond, backfill control valve, see Fig. 8-18 - 8-22 for backfill blade hydraulic circuit, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

ADAPTER - special, power beyond, backfill control valve

1шт.

2

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

3

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H266015

HOSE

26-1/2 inch (673 mm) long, plow lift control valve supply

1шт.

8

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

H657320

VALVE

control, plow lift, parts list Fig. 8-64, no longer available, order H674731

1шт.

10

H674731

VALVE

control, plow lift, parts list Fig. 8-65A

1шт.

11

H746875

SCREW

RESTRICTOR - special, .043 inch (1.09 mm) orifice

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Incl. Ref. 13

1шт.

14

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Plow Lift Control Valve to Tee

1шт.

15

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare

1шт.

16

H171629

HYDRAULIC HOSE,304.80 mm, SAE 100R1

Tee To Right-Hand Plow Lift Cylinder, Closed End

1шт.

17

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Tee to Left-Hand Plow Lift Cylinder, Closed End

1шт.

18

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, 9/16-18 flare x 3/8 inch PT

2шт.

19

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

plow lift, parts list Fig. 8-70

2шт.

20

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree, 9/16-18 flare x 1/4 inch PT

2шт.

21

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Left-Hand Plow Lift Cylinder Rod Ends to Tee

1шт.

22

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 inch fl branch x flare x adj straight thread

1шт.

23

D81836

HOSE

16 inch (406 mm) long, tee to control valve

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 25

1шт.

26

217-182

FITTING,1/2" Hose Barb x 3/4" - 16 Male ORB

stem, straight, 1/2 hose ID x 3/4-16 inch O-ring, Incl. Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

L59112

HOSE,0.50" ID x 8.00", SAE 100R3

1/2 (13) ID x 8 inch (203 mm) long, control valve to return tube

1шт.

29

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

adj, 1/2 - 29/32 inch dia

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
