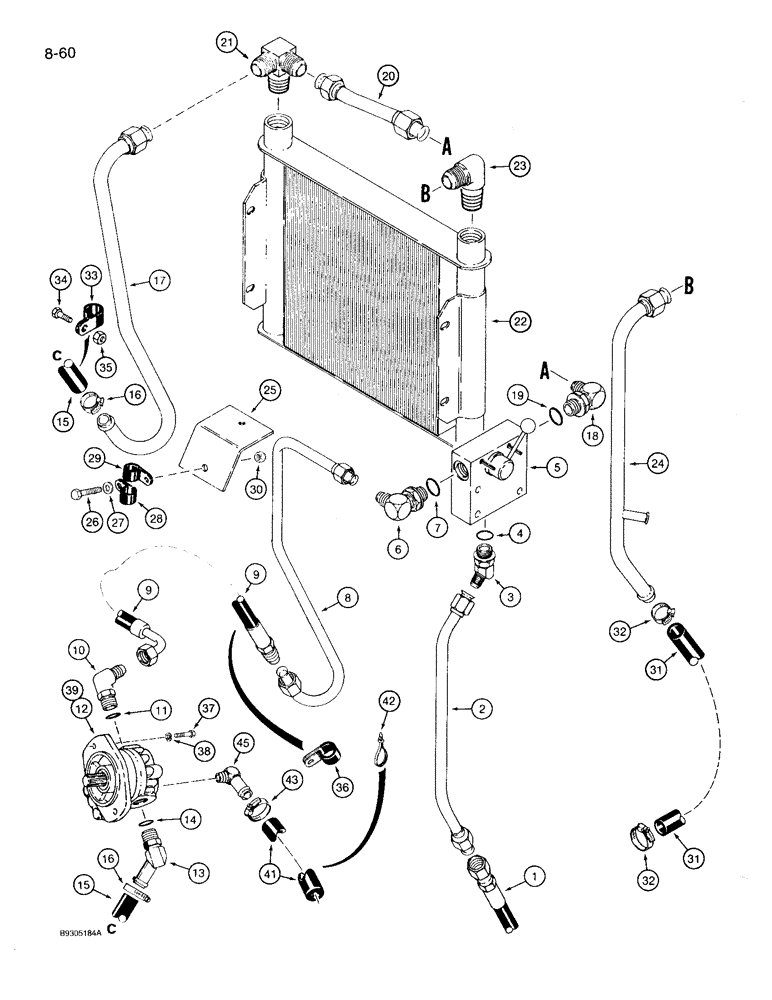

Запчасти Case 360 (8-60) - PLOW HYDRAULIC CIRCUIT - CONTROL VALVE, OIL COOLER, AND MOTOR (08) - HYDRAULICS

1

H551333

HOSE,0.50" ID x 8.50", SAE 100R2

Rear Attachment Supply Tube to Control Valve Supply Tube, See Fig. 8-10 for Rear Attachment Supply and Return Lines

1шт.

2

H672423

TUBE ASSY.,15.8 mm OD

control valve supply

1шт.

3

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - control, plow motor, for correct assembly and components, see Fig. 8-68 and 8-69A

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

H672425

TUBE ASSY.,15.8 mm OD

control valve to plow motor supply hose

1шт.

9

H434996

HOSE ASSY.

52 inch (1321 mm) long, plow motor supply

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

H672505

MOTOR

plow, parts list Fig. 8-68, no longer available, order H674539 motor

1шт.

13

217-324

FITTING,45 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

45 degree, 3/4 stem end x 7/8-14 inch adj O-ring, Incl. Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

H309062

HOSE

3/4 (19) ID x 51 inch (1295 mm) long, plow motor return, cut from H379214 bulk hose, see below

1шт.

16

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

17

H672426

TUBE ASSY.,19 mm OD

plow motor return hose to plow hydraulic oil cooler

1шт.

18

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

H672422

TUBE ASSY.,19 mm OD

plow control valve return

1шт.

21

H434121

TEE

special

1шт.

22

H351734

COOLER, OIL

plow hydraulic oil, see Fig. 9-86 for mounting

1шт.

23

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, 1-1/16-12 flare x 1 inch PT

1шт.

24

H672424

TUBE ASSY.,19 mm OD

return, see Fig. 8-10 for rear attachment supply and return lines

1шт.

25

H433996

BRACKET

tube mounting

1шт.

26

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

27

H426775

WASHER

flat, 5/16 inch, hardened

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

right-hand tube

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

left-hand tube

1шт.

30

232-4115

LOCK NUT,5/16"-18, GC

1шт.

31

H352237

HOSE,0.75" ID x 14.50", SAE 30R2 Type 1

To Rear Hydraulic Return Tube, Fig. 8-10, Ref. 22, Cut from H379214 Bulk Hose, See Below

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
