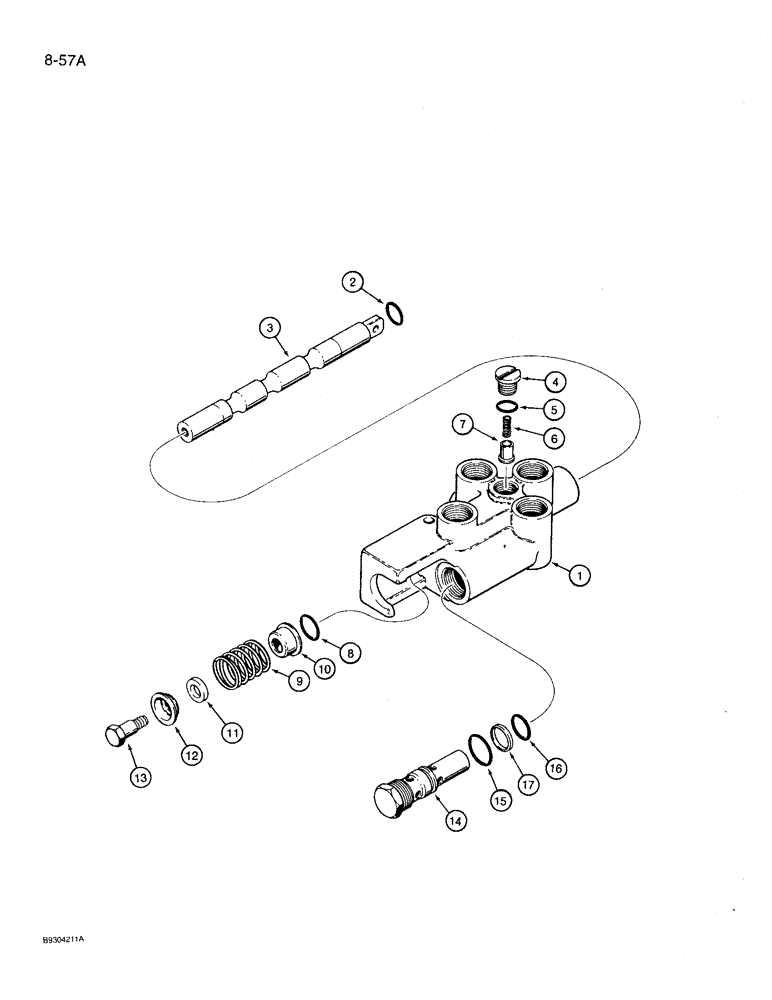

Запчасти Case 360 (8-57A) - HYDRA-BORER CONTROL VALVE - 107110A1 (08) - HYDRAULICS

107110A1

VALVE

control, Hydra-Borer, if used, Incl. Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

114313A1

O-RING

spool

1шт.

3

T55119

SPOOL

control valve

1шт.

H47506

PLUG

load check, Incl. Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

5

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

6

FH730374

SPRING

load check

1шт.

7

FH730366

PLUNGER

load check

1шт.

8

114314A1

O-RING

spool, plug end

1шт.

9

H52928

VALVE SPRING

centering, spool

1шт.

10

H52902

CAP

SEAT - spring, inner

1шт.

11

H746164

WASHER

flat, special, 5/32 inch thick

1шт.

12

F59116

WASHER

SEAT - spring, outer

1шт.

13

H428292

SCREW,1/4" - 20 x 0.972"

special, spool

1шт.

N8813

LOCK VALVE

relief, control valve, Incl. Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

relief, control valve

1шт.

15

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

outer, large

1шт.

16

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

inner, small

1шт.

17

G32626

RING

backup, inner O-ring

1шт.
