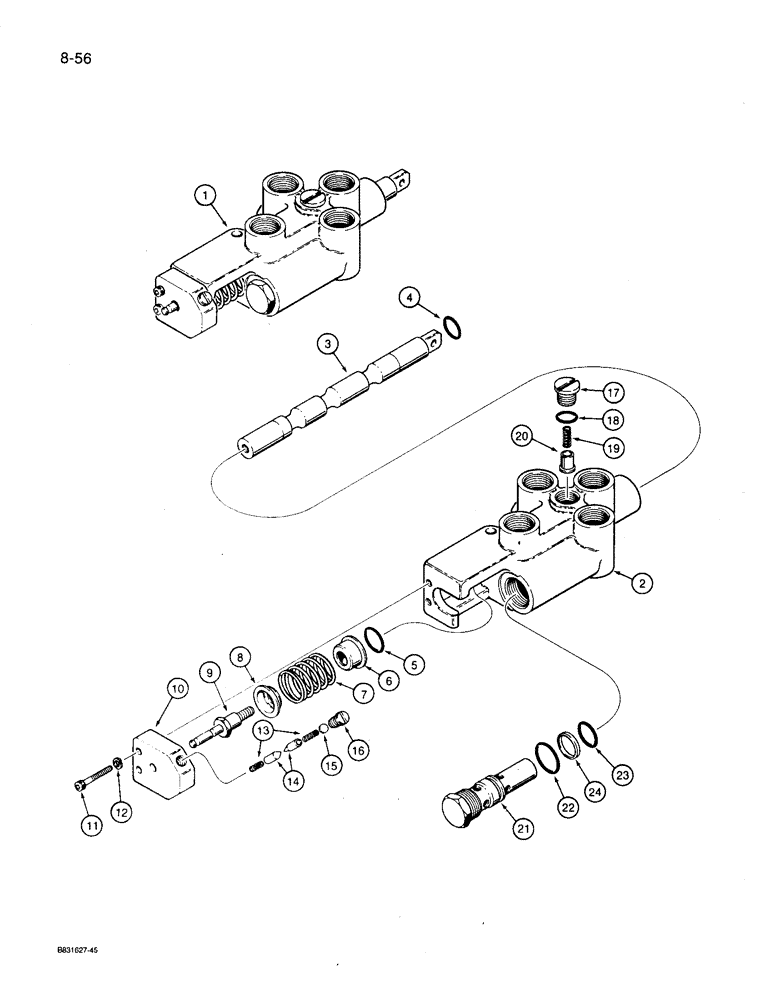

Запчасти Case 360 (8-56) - HYDRA-BORER CONTROL VALVE - H544718 (08) - HYDRAULICS

1

H544718

LOCK VALVE

control, with detent, Hydra-Borer, if used, Incl. Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

F37887

O-RING

spool, spool eye end; Part of Seal Kit, P/N H125864

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

spool, plug end; Part of Seal Kit, P/N H125864

1шт.

6

H138271

WASHER

SEAT - spring, inner

1шт.

7

H52928

VALVE SPRING

centering, spool

1шт.

8

F59116

WASHER

SEAT - spring, outer

1шт.

9

H152157

SCREW

spool end, detent

1шт.

10

H125831

BLOCK

detent

1шт.

11

173-239

SCREW

machine, round head slotted, 1/4 NC x 1 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

2шт.

13

H105049

SPRING

detent

2шт.

14

H104992

PAWL

PLUNGER - detent

2шт.

15

H141788

DISC

SHIM - detent

1шт.

16

H105015

PLUG

detent retaining

1шт.

H47506

PLUG

load check, Incl. Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug; Part of Seal Kit, P/N H125864

1шт.

19

FH730374

SPRING

load check

1шт.

20

FH730366

PLUNGER

load check

1шт.

N8813

LOCK VALVE

relief, control valve, Incl. Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - relief, control valve

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

outer, large; Part of Seal Kit, P/N H125864

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

inner, small; Part of Seal Kit, P/N H125864

1шт.

24

G32626

RING

backup, inner O-ring; Part of Seal Kit, P/N H125864

1шт.

H125864

KIT

Incl. Ref. 4, 5, 18, 22, 23 and 24

1шт.
