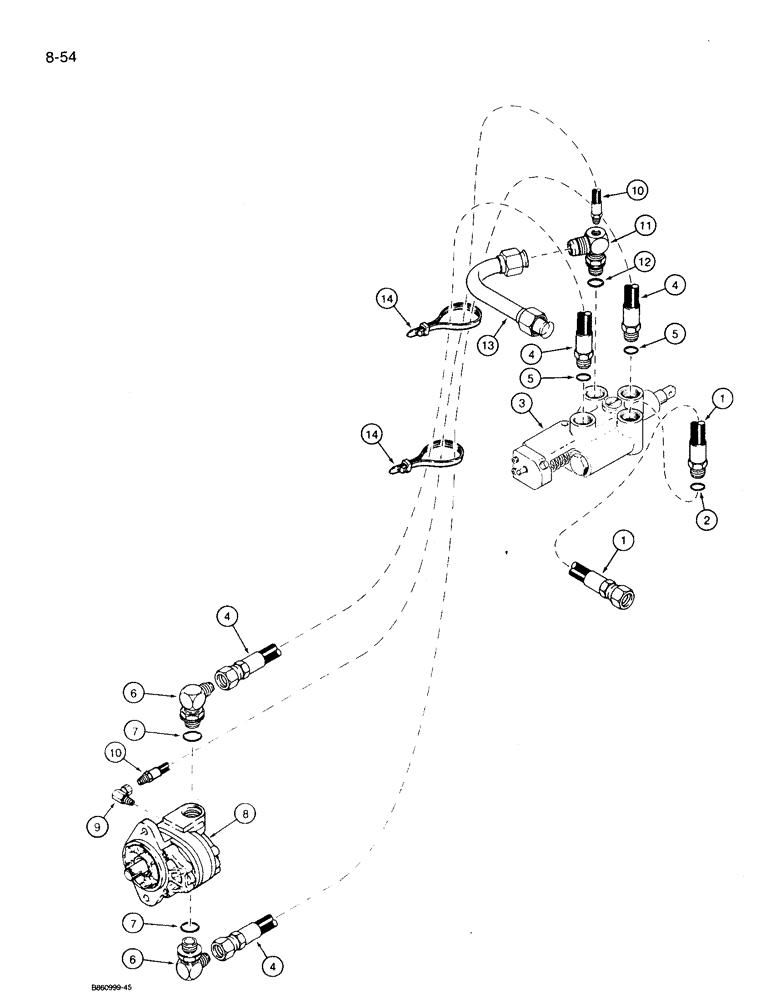

Запчасти Case 360 (8-54) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H96867

HOSE,0.50" ID x 14.00", SAE 100R2A

Hydra-Borer Control Valve Supply, Incl. Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H544718

LOCK VALVE

control, with detent, if used, Hydra-Borer, parts list Fig. 8-56, mounting Fig. 9-68

1шт.

3a

107110A1

VALVE

control, without detent, if used, not shown, Hydra-Borer, parts list Fig. 8-57A, mounting Fig. 9-68

1шт.

4

H211821

HYDRAULIC HOSE,12.70 mm ID x 1041.40 mm, SAE 100R1

Control Valve to Hydra-Borer Motor, Includes Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

H654814

MOTOR

Hydra-Borer, parts list Fig. 8-58, mounting Fig. 9-70

1шт.

9

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

90 deg, 1/8 inch PT x swivel straight pipe thread

1шт.

10

H71407

HOSE,0.25" ID x 39.00"

Hydra-Borer Motor Case Drain

1шт.

11

H434215

FITTING

90 degree, special, Incl. Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

H672698

TUBE,19 mm OD x 203, 109 mm L

Hydra-Borer control valve return

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
