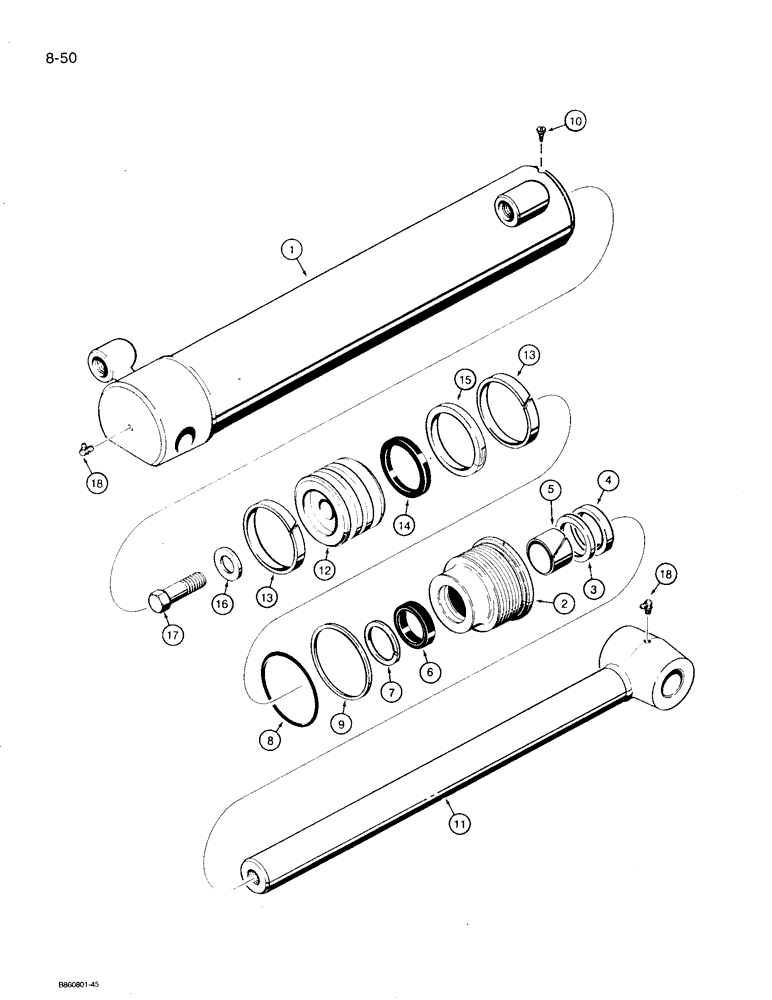

Запчасти Case 360 (8-50) - BACKHOE BOOM, DIPPER, AND BUCKET CYLINDERS (08) - HYDRAULICS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3" (76 mm) ID x 14-5/8" (371 mm) stroke, backhoe boom, dipper, and bucket, Incl. Ref. 1 - 18

3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

1шт.

G104222

GLAND

cylinder, Incl. Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod; Part of Seal Kit, P/N G109452

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center; Part of Seal Kit, P/N G109452

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring; Part of Seal Kit, P/N G109452

1шт.

6

G100776

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, piston rod, narrow, with groove; Part of Seal Kit, P/N G109452

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland; Part of Seal Kit, P/N G109452

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring; Part of Seal Kit, P/N G109452

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

G101357

ROD

piston, 1-1/2" (38 mm) diameter

1шт.

12

G100442

PISTON

cylinder

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Part of Seal Kit, P/N G109452

2шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

backup, piston seal; Part of Seal Kit, P/N G109452

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston; Part of Seal Kit, P/N G109452

1шт.

16

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

G109452

GASKET KIT

Incl. Refs. 4, 5, 6 (Except G100776), 7, 8, 9, 13, 14, and 15

1шт.
