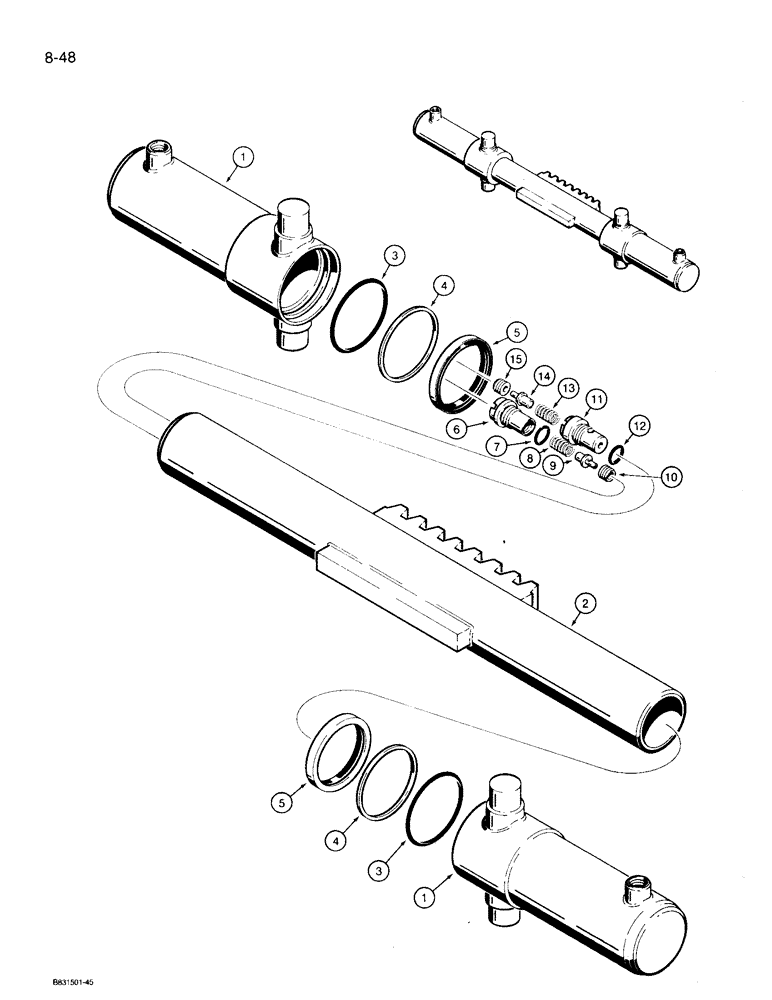

Запчасти Case 360 (8-48) - BACKHOE SWING CYLINDER (08) - HYDRAULICS

H514125

CYLINDER ASSY.

2-3/4" (70 mm) ID x 8" (203 mm) stroke, backhoe swing, Incl. Ref. 1 - 15

1шт.

1

H392068

BARREL

swing cylinder

2шт.

2

H53017

PISTON ROD

1шт.

3

H743591

O-RING

tube seal

2шт.

4

H754606

WASHER

backup, O-ring

2шт.

5

H215202

SEAL ASSY.

dust

2шт.

H53033

LOCK VALVE

relief, tube, Incl. Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

7

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

body

1шт.

8

F37883

SPRING

relief valve

1шт.

9

H138362

SPOOL

relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53025

LOCK VALVE

Incl. Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

body

1шт.

13

F37883

SPRING

relief valve

1шт.

14

H138362

SPOOL

relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.
