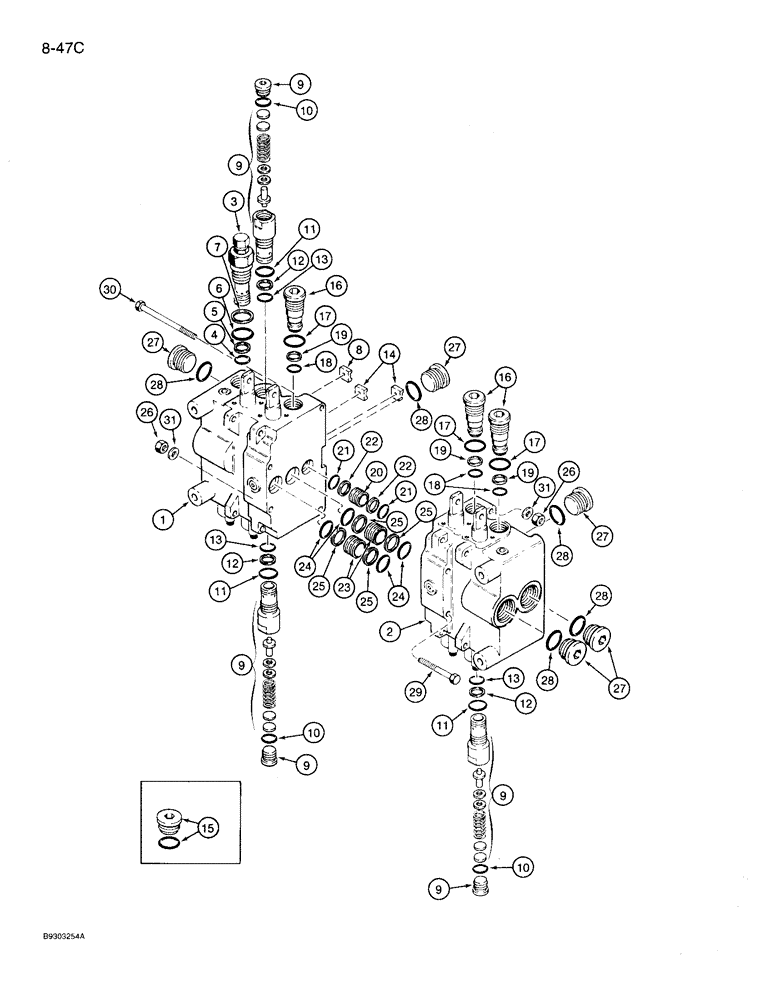

Запчасти Case 360 (8-47C) - BACKHOE CONTROL VALVE - H674299 (DUKES), WITH TWO CONTROL LEVERS (08) - HYDRAULICS

H674299

VALVE

backhoe control, four spool, complete parts lists on Figs. 8-47A - 8-47G, Incl. Ref. 1 - 31

1шт.

1

H675032

HYD VALVE SECTION

inlet, parts list Fig. 8-47E

1шт.

2

H675033

KNIFE SECTION

SECTION, KNIFE outlet, parts list Fig. 8-47G

1шт.

H439144

VALVE, PRESSURE RELI

EF VALVE ASSEMBLY - relief, 2000 PSI, inlet section, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H673570

SEAL PACKAGE

Incl. Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 1/16 inch wide

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, 9/16 ID x 1/16 inch wide

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 1/16 inch wide

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, 11/16 ID x 1/16 inch wide

1шт.

8

H438041

LARGE PLATE

PLATE, LARGE orifice, .138 inch opening

1шт.

H438945

VALVE, PRESSURE RELI

EF 3000 PSI, Incl. Ref. 9 - 13

3шт.

9

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit, P/N H674536

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup; Part of Seal Kit, P/N H674536

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Part of Seal Kit, P/N H674536

1шт.

14

H439145

ORIFICE

PLATE - orifice, .063 inch opening

2шт.

15

H438953

PLUG

hex socket, 3/4 inch NF, Incl. O-ring

1шт.

H438954

PLUG

Incl. Ref. 16 - 19

5шт.

16

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit, P/N H674536

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Part of Seal Kit, P/N H674536

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup; Part of Seal Kit, P/N H674536

1шт.

20

H438029

TUBE

small, Incl. Ref. 21 and 22

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

22

H438044

GASKET

backup

2шт.

23

H438028

TUBE

large, Incl. Ref. 24 and 25

2шт.

24

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

2шт.

25

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup

2шт.

26

425-114

NUT,1/4"-28, G5

4шт.

27

86625138

PLUG,7/18" - 14

Includes Ref. 28

5шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

30

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

H674536

O-RING

Incl. (3) O-rings and (1) backup ring, used to service H438945 valve or H438954 plug assembly, Incl. Ref. 10, 11, 12, 13, 17, 18 and 19

8шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

part of seal kit, P/N H674536

1шт.
