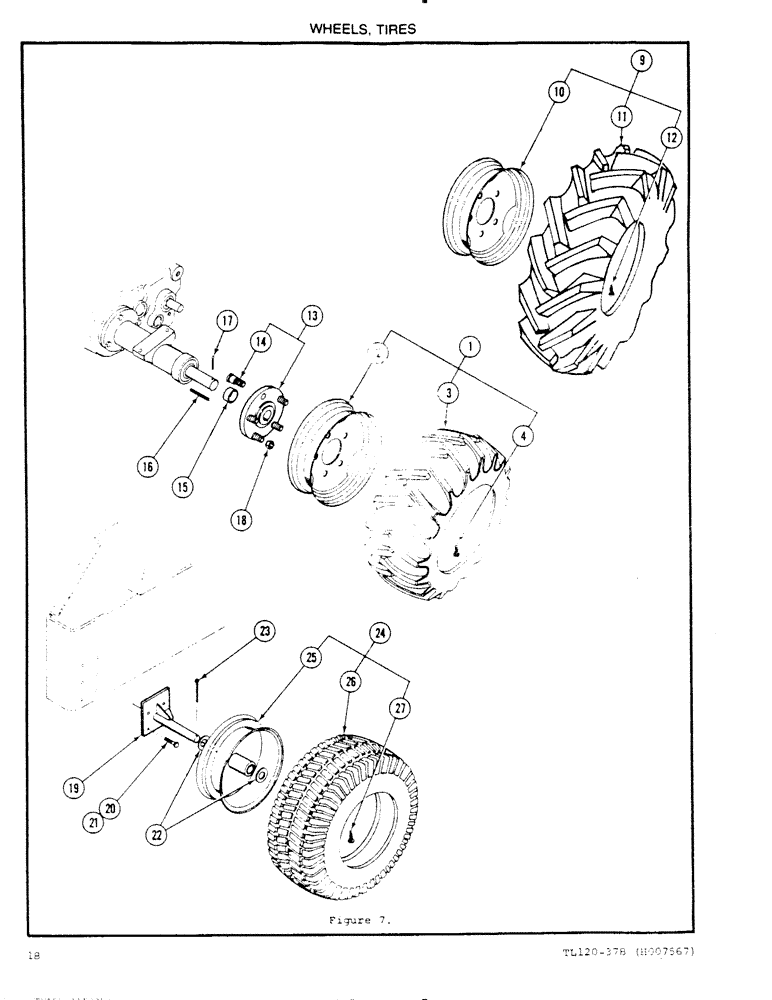

Запчасти Case 120 (18) - WHEELS, TIRES

1

H604942

Tire & Wheel Assy - Rear, Includes: Ref. 2 - 4

2шт.

2

H554972

WHEEL

(7 x 12)

1шт.

3

H164616

TYRE/TIRE

Tire - Traction Field & Road (4 ply 8.50 - 12 x 23)

1шт.

4

A38261

VALVE

Stem - Valve

1шт.

5

DELETED

1шт.

6

DELETED

1шт.

7

DELETED

1шт.

8

DELETED

1шт.

9

H604967

Tire & Wheel Assy - Rear, Includes: Ref. 10 - 12

2шт.

10

H281113

WHEEL (STEERING)

Wheel (4 x 12)

1шт.

11

H279463

Tire - Super Sure Grip (2 ply 6 x 12)

1шт.

12

A38261

VALVE

Stem - Valve

1шт.

13

H602268

HUB CAP

Hub Assy - Axle, Includes: Ref. 14

2шт.

14

H171090

WHEEL BOLT

Bolt - Wheel

5шт.

15

H288001

SPACER

2шт.

16

H36384

KEY

Sq (1/4 x 1 3/8)

2шт.

17

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

18

N4221

WHEEL NUT

- Wheel

10шт.

19

H602367

CENTER AXLE

Axle Assy - Front

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut NC Hex C/L (5/16)

4шт.

22

H738815

WASHER

- Flat (3/4)

2шт.

23

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

24

H604934

Tire & Wheel Assy - Front, Includes: Ref. 25 - 27

1шт.

25

H204602

HUB

Wheel (5.375 x 8)

1шт.

26

H204610

WHEEL

Tire (2 ply 6.50 - 8 x 16)

1шт.

27

C10442

VALVE

Stem - Valve

1шт.
