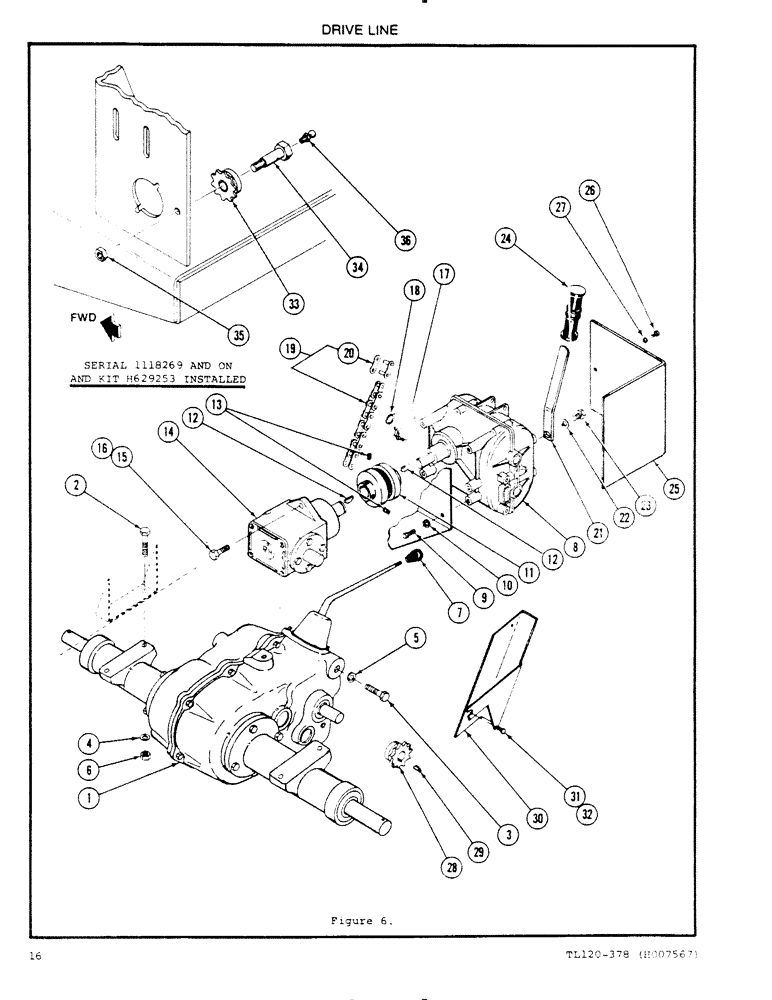

Запчасти Case 120 (16) - DRIVE LINE

1

H601906

Transaxle Assy (see Fig. 12 for parts list)

1шт.

2

113-2220

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

NC HH (3/8 x 1 3/4)

4шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

NC HH (3/8 x 1)

1шт.

4

D41740

WASHER

- Flat HT (3/8)

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

7

A14051

GRIP

Knob - Gear Shift

1шт.

8

H603175

TRANSMISSION

Assy - Auxiliary (see Figure 10 for parts list)

1шт.

H636290

TRANSMISSION

Assy - Auxiliary (see Figure 10 for parts list)

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

195-538

Washer - Lock (5/16)

4шт.

11

H606418

COUPLING

Coupler

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

2шт.

13

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

Screw 0 Set NC (1/4 x 3/8)

4шт.

14

H603167

TRANSMISSION

Gear Assy - Right Angle Drive (see Figure 12 for parts list)

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

230-4216

LOCK NUT,3/8"-16, GA

Nut HC HH C/L (3/8)

2шт.

17

H288332

DRIVE SPROCKET

Sprocket

1шт.

18

G46176

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

1шт.

19

H757427

CHAIN (AG)

Chain - Drive ASA #40, Includes: Ref. 20

1шт.

H757427

CHAIN (AG)

Chain - Drive ASA #40, Includes: Ref. 20

1шт.

H757823

CHAIN (AG)

Chain - Drive ASA #40, Includes: Ref. 20

1шт.

20

H748285

CONNECTOR, ELEC

Link - Connector

1шт.

21

H287573

LEVER

- Control

1шт.

22

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

NC HH (5/16 x 1/2)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

NC HH (1/4 x 1/2)

1шт.

23

195-521

WASHER,5/16", SAE

- Flat (5/16)

1шт.

195-518

WASHER,1/4", SAE

- Flat (1/4)

1шт.

24

H31773

HANDLE

Grip - Handle

1шт.

H346494

ADHESIVE

- Grip (5 oz. tube 3M #847)

1шт.

25

H289983

Guard - Transmission

1шт.

26

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

Screw - Cap Self Tapping (5/16 x 3/4)

1шт.

27

195-538

Washer - Lock (5/16)

1шт.

28

H298448

DRIVE SPROCKET

Sprocket

1шт.

29

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

30

H313056

Guard - Chain

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut NC HH C/L (5/16)

1шт.

33

H634808

WHEEL (STEERING)

Sprocket - Idler

1шт.

34

H340216

BOLT (SPREADER)

Bolt - Special

1шт.

35

131-1308

JAM NUT,Jam, 1/2"-13

Nut - Jam NC HH (1/2)

1шт.

36

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Fitting - Grease

1шт.
