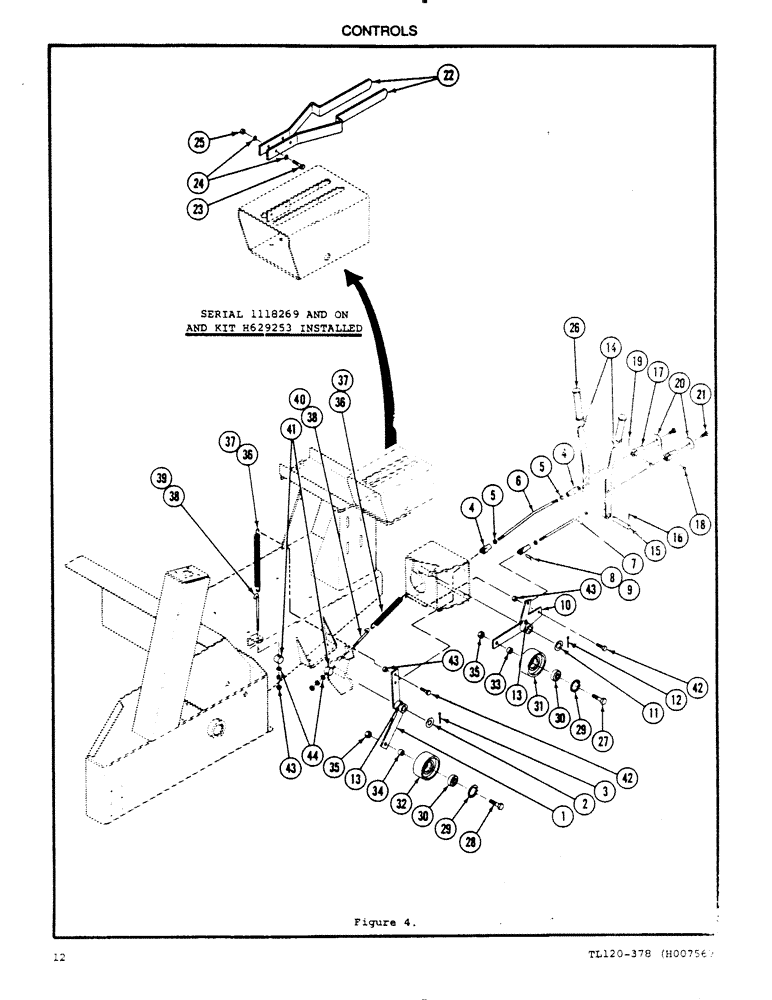

Запчасти Case 120 (12) - CONTROLS

1

H603209

LEVER

Clutch Lever - Digging Chain

1шт.

2

195-545

WASHER,3/4", SAE

- Flat (3/4)

1шт.

3

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

4

H44198

YOKE

- Clevis

4шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

6

H612234

ROD

- Control

1шт.

7

H287953

DRAG LINK

Rod - Control

1шт.

8

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

Pin - Clevis (5/16 x 1)

4шт.

9

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

10

H603324

LEVER

Clutch Lever - Propulsion

1шт.

11

195-545

WASHER,3/4", SAE

- Flat (3/4)

1шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Fitting - Grease

2шт.

14

H603373

Lever - Control

2шт.

15

H287912

SHAFT

- Control Lever

1шт.

16

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

17

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

Yoke - Clevis

2шт.

18

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

Pin - Clevis (1/4 x 51/64)

2шт.

19

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

20

A26383

WASHER

- Flat

2шт.

21

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

NF HH (1/4 x 3/4)

2шт.

22

H363911

STOP

Catch - Safety

2шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

195-518

WASHER,1/4", SAE

- Flat (1/4)

4шт.

25

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

26

H31773

HANDLE

Grip - Control Lever

2шт.

H346494

ADHESIVE

- Grip (5 oz. tube 3M #847)

1шт.

27

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

28

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

NC HH (1/2 x 2 1/2)

1шт.

29

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.

30

H757674

BEARING ASSY

Bearing

2шт.

31

H184192

SHEAVE

- Idler

1шт.

32

H305524

SHEAVE

- Idler

1шт.

33

H182592

SPACER

1шт.

34

H306233

SPACER

1шт.

35

131-1182

LOCK NUT,1/2"-13, GA

Nut NC HH C/L (1/2)

2шт.

36

H93377

VALVE SPRING

Spring

2шт.

37

H43216

VALVE SPRING

Spring

2шт.

38

H43208

BOLT

Link - Adjust

2шт.

39

H323832

DRAG LINK

Link - Adjust (Dig) insde lever

1шт.

40

H323840

DRAG LINK

Link - Adjust (Prop) outside lever

1шт.

41

H340380

ROCKER

- Link

2шт.

42

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

43

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut NC HH C/L (5/16)

6шт.

44

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.
