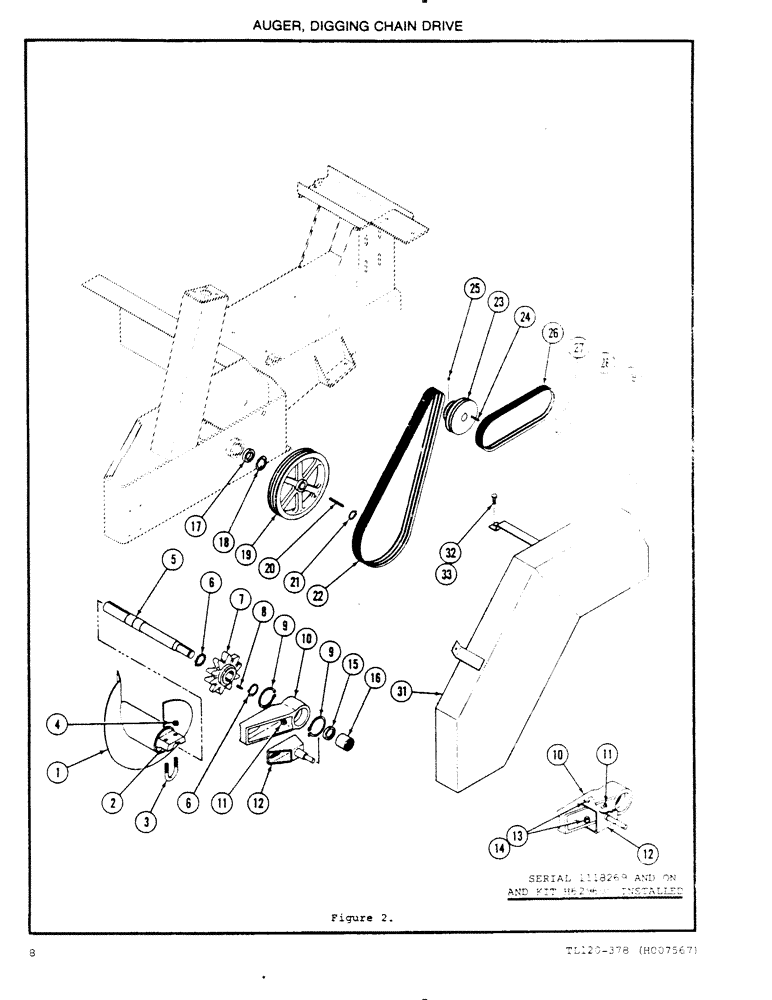

Запчасти Case 120 (08) - AUGER, DIGGING CHAIN DRIVE

1

H604009

AUGER

Includes: Ref. 2

1шт.

2

H34421

HUB

- Auger

1шт.

3

H34439

U-BOLT

Bolt - "U"

1шт.

4

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

5

H289017

SHAFT

- Digging Chain Drive

1шт.

6

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

7

H207688

DRIVE SPROCKET

Sprocket - Digging Chain

1шт.

8

03995AB

Key Sq (1/4 x 1 3/32)

1шт.

9

H746651

SNAP RING,#262, Ext

Ring, Snap, #262, Ext

2шт.

10

H207720

NO LONGER SERVICED

Casting - Boom Pivot, interchangeable only as a set

1шт.

S/N 1100500 through 1118268 and machines that do not have H629600 boom casting rework kit installed.

1шт.

H309385

BOOM

Casting - Boom Pivot, interchangeable only as a set

1шт.

S/N 1118269 and after and all machines that have H629600 boom casting rework kit installed.

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - Grease

1шт.

12

H306217

ARM, LIFT

Casting - Boom Lift, interchangeable only as a set

1шт.

S/N 1100500 through 1118268 and machines that do not have H629600 boom casting rework kit installed.

1шт.

H614701

ARM

Casting - Boom Lift, interchangeable only as a set

1шт.

S/N 1118269 and after and all machines that have H629600 boom casting rework kit installed.

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

S/N 1118269 and after and all machines that have H629600 boom casting rework kit installed.

1шт.

14

230-4216

LOCK NUT,3/8"-16, GA

Nut NC HH C/L (3/8)

4шт.

S/N 1118269 and after and all machines that have H629600 boom casting rework kit installed.

1шт.

15

H749127

SEAL

- Grease

1шт.

16

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

Bearing - Needle

1шт.

17

H757807

BALL BEARING

Bearing - Ball

1шт.

18

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

19

H305607

SHEAVE

- Digging Chain Drive

1шт.

20

D58493

KEY

Sq (1/4 x 1 5/8)

1шт.

21

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

22

H306225

V-BELT

Drive, Digging Chain

1шт.

23

H305581

SHEAVE

- Engine

1шт.

24

T25070

KEY

Sq (1/4 x 2)

1шт.

25

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set - Screw Cup Point (3/8 x 3/8)

2шт.

26

H288209

V-BELT

Drive

1шт.

27

H298455

SHEAVE

- Driven

1шт.

28

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

29

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

30

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

Set - Screw Cap Point (1/4 x 3/8)

2шт.

31

H603431

Guard - Belt

1шт.

32

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

NC HH (5/16 x 3/4)

4шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut NC HH C/L (5/16)

4шт.
