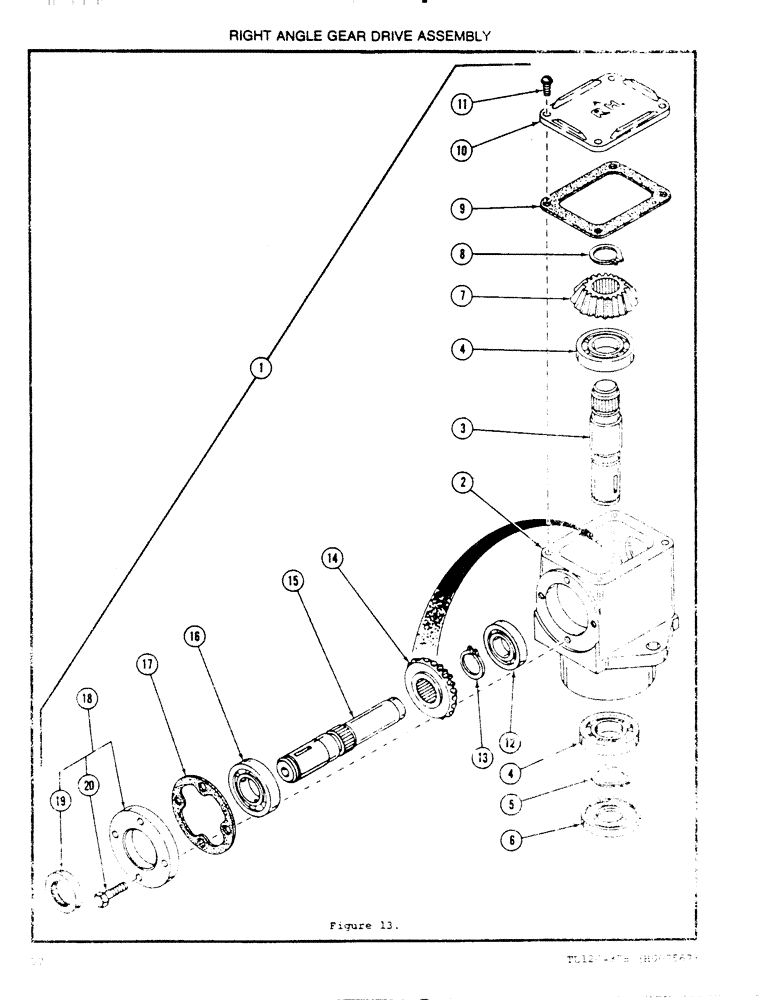

Запчасти Case 120 (30) - RIGHT ANGLE GEAR DRIVE ASSEMBLY

1

H603167

TRANSMISSION

Right Angle Drive Gear Case Assy, Includes: Ref. 2 - 20

1шт.

2

H296376

HOUSING

1шт.

3

H296400

SHAFT

- Output

1шт.

4

H757013

Bearing - Ball

2шт.

5

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

6

H757021

OIL RESERVOIR

Seal - Oil

1шт.

7

H296384

GEAR WHEEL

Gear - Motor

1шт.

8

A35094

SNAP RING,#81, Ext

Ring, Snap, #81, Ext

1шт.

9

H296426

GASKET

- Cover

1шт.

10

H296418

Cover

1шт.

11

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

Screw - Cap, Self Tapping (#10 - 24 x 1/2)

4шт.

12

C11202

BEARING

- Ball

1шт.

13

A35094

SNAP RING,#81, Ext

Ring, Snap, #81, Ext

1шт.

14

H296384

GEAR WHEEL

Gear - Motor

1шт.

15

H296392

SHAFT

- Input Pinion

1шт.

16

H757013

Bearing - Ball

1шт.

17

H296434

GASKET

- Cap

1шт.

18

H606830

CYLINDER END CAP

Cap and Seal Assy, Includes: Ref. 19 and 20

1шт.

19

H757039

SEAL ASSY.

Seal - Oil

1шт.

20

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

Screw - Cap HH (1/4 - 20 x 7/8)

4шт.
