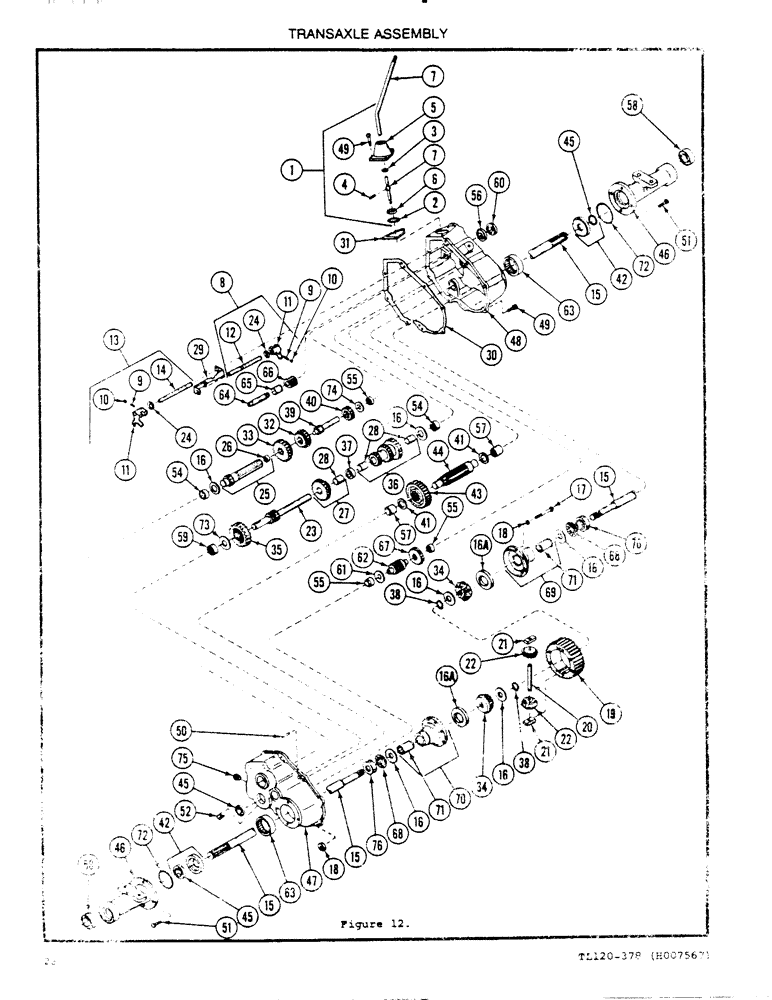

Запчасти Case 120 (28) - TRANSAXLE ASSEMBLY

H601906

Transaxle Asm, Includes: Ref. 1 - 76

1шт.

1

H606723

HOUSING ASSY.

Lever & Housing Asm, Includes: Ref. 2 - 7

1шт.

2

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

3

35012

RING

Quad Ring

1шт.

4

C19324

AXLE PIN

Drive Pin

1шт.

5

C11162

HOUSING

Shift Lever Housing

1шт.

6

C11163

LEVER

Shift Lever Keeper

1шт.

7

H296046

LEVER

Shift Lever

1шт.

8

C11165

ROD

Asm, Includes: Ref. 9 - 11 and 24

1шт.

9

C11166

SPRING

1шт.

10

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

Steel Ball

1шт.

11

C11167

FORK

Shifter Rod ( 3rd & 4th)

1шт.

13

C11169

ROD

Shift Rod Asm (Also Includes: Refs. 9, 10, 11, 14 and 24)

1шт.

14

C11170

ROD

Shifter Rod (low)

1шт.

15

H296053

CENTER AXLE

Axle - Right & Left

2шт.

16

C11178

BEARING

Thrust Washer

6шт.

16a

H296756

WASHER

Thrust Washer

2шт.

17

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

H296061

RING

Gear

1шт.

20

C11173

AXLE PIN

Drive Pin

1шт.

21

C11174

BLOCK

Drive Block

2шт.

22

H296079

PINION

Bevel Pinion

2шт.

23

H296087

SHAFT

& Gear - Brake

1шт.

24

A11538

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

2шт.

25

C11177

SHAFT

Pinion Shaft & Bearing Asm

1шт.

26

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

Bearing

1шт.

27

C11179

GEAR

Cluster Asm, Includes: Ref. 28

1шт.

28

C11180

BUSHING

3шт.

29

C11181

STOP

Shifter Stop

1шт.

30

C11182

GASKET

- Shift Lever Housing

1шт.

32

C11184

GEAR

Shifting Gear (3rd & 4th)

1шт.

33

C11185

GEAR

Shifting Gear (1st, 2nd & Reverse)

1шт.

34

H296095

GEAR WHEEL

Bevel Gear

1шт.

35

C11187

GEAR WHEEL

Idler Gear

1шт.

36

C11188

GEAR

Cluster Asm

1шт.

37

C11189

SPACER

1шт.

38

C11222

RING,#66, Ext

Snap, #66, Ext

2шт.

39

C115800

Input Shaft

1шт.

40

C11191

GEAR WHEEL

Spur Gear - Input Shaft, Includes: Ref. 41 - 43

1шт.

41

C11201

WASHER

Thrust Washer

2шт.

42

C11192

SEAL

& Retainer Asm (Includes: Ref. 45)

2шт.

43

C11193

GEAR

Input Gear

1шт.

44

C11194

PINION

Output Pinion

1шт.

45

C11195

OIL SEAL

Oil Seal

3шт.

46

H352740

HOUSING

Axle Housing - Right & Left

2шт.

47

H606731

COVER ASSY

Cover Asm

1шт.

48

H606749

CASE

Asm

1шт.

49

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SSHC (1/4-20 x 3/4")

1шт.

50

F53650

PIN

Dowel Pin

1шт.

51

83-514

SCREW,Hex Socket, 5/16" - 18 x 7/8"

HHCS (5/16-18 x 7/8")

8шт.

52

221-672

DRAIN PLUG,Sq Hd, 3/8" NPT

Magnetic Drain Plug

1шт.

54

C11200

BEARING

Needle Bearing

2шт.

55

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

2шт.

56

C11204

BEARING

Ball Bearing

1шт.

57

C11203

BEARING

Needle Bearing

2шт.

58

C11204

BEARING

Ball Bearing

2шт.

59

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

1шт.

60

C11206

SEAL ASSY.

OilSeal

1шт.

61

C11205

WASHER

1шт.

62

C11207

PINION

Shaft & Pinion

1шт.

63

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1-3/4 in ID

2шт.

64

C11209

SHAFT

Reverse Idler Shaft

1шт.

65

C11210

SPACER

Reverse Idler Spacer

1шт.

66

C11211

WHEEL (STEERING)

Reverse Idler

1шт.

67

C11212

GEAR

Spur Gear (22 Teeth)

1шт.

68

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

Thrust Bearing

2шт.

69

H606780

CARRIER

Differential Carrier Asm (Includes: Ref. 71)

1шт.

70

H606756

CARRIER

Differential Carrier Asm (Includes: Ref. 71)

1шт.

71

C11216

BUSHING

2шт.

72

C11208

O-RING

O Ring

2шт.

73

C11223

WASHER

Thrust Washer

2шт.

74

C10822

WASHER

Thrust Washer

1шт.

75

221-13

PLUG,Sq Hd, 3/8"-18

Pipe Plug

1шт.

76

H756981

RACE

Thrust Race

1шт.
