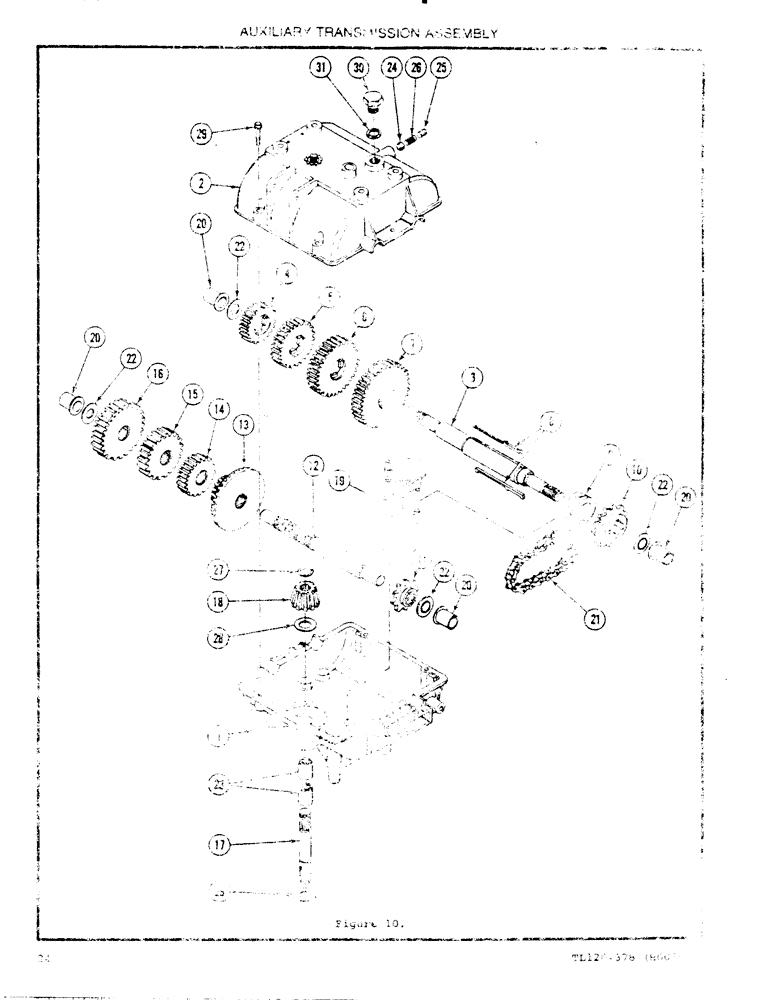

Запчасти Case 120 (24) - AUXILIARY TRANSMISSION ASSEMBLY

1

H603175

TRANSMISSION

Auxiliary Transmission Asm, Includes: Ref. 1 - 31

1шт.

1

H606764

CASE

Asm

1шт.

2

H296111

COVER ASSY

Cover - Transmission

1шт.

3

H296129

SHAFT

Output Shaft

1шт.

4

H296137

Spur Gear (20 Teeth)

1шт.

5

H296145

Spur Gear (25 Teeth)

1шт.

6

H296152

Spur Gear (30 Teeth)

1шт.

7

H296160

Spur Gear (35 Teeth)

1шт.

8

H296178

KEY

2шт.

9

G296186

Shift Collar

1шт.

10

H296194

DRIVE SPROCKET

Sprocket (14 Teeth)

1шт.

11

H296202

DRIVE SPROCKET

Sprocket (10 Teeth)

1шт.

12

H296210

Counter Shaft

1шт.

13

H296228

GEAR WHEEL

Bevel Gear (42 Teeth & 15 Teeth Spur Gear)

1шт.

14

H296236

Spur Gear (20 Teeth)

1шт.

15

H296244

Spur Gear (25 Teeth)

1шт.

16

H296251

GEAR WHEEL

Spur Gear (30 Teeth)

1шт.

17

H296269

SHAFT

Inlet Shaft

1шт.

18

H296277

GEAR WHEEL

Input Bevel Pinion

1шт.

19

H606772

MOVING UNIT

Rod & Fork Asm - Shifter

1шт.

20

H296293

BUSHING

Flange Bushing

4шт.

21

H756973

CHAIN (AG)

Chain #41 (22 Links)

1шт.

22

C19345

WASHER

Thrust Washer

4шт.

23

A36508

BEARING

Needle Bearing

2шт.

24

211-309

BALL

Steel Ball (5/16")

1шт.

25

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

(3/8-16 x 3/8")

1шт.

26

H296301

Spring

1шт.

27

G46176

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

1шт.

28

C19645

Thrust Washer

2шт.

29

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Taptite) Hex, 1/4"-20 x 1 1/4", G5

4шт.

30

H310011

Plug

1шт.

31

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
