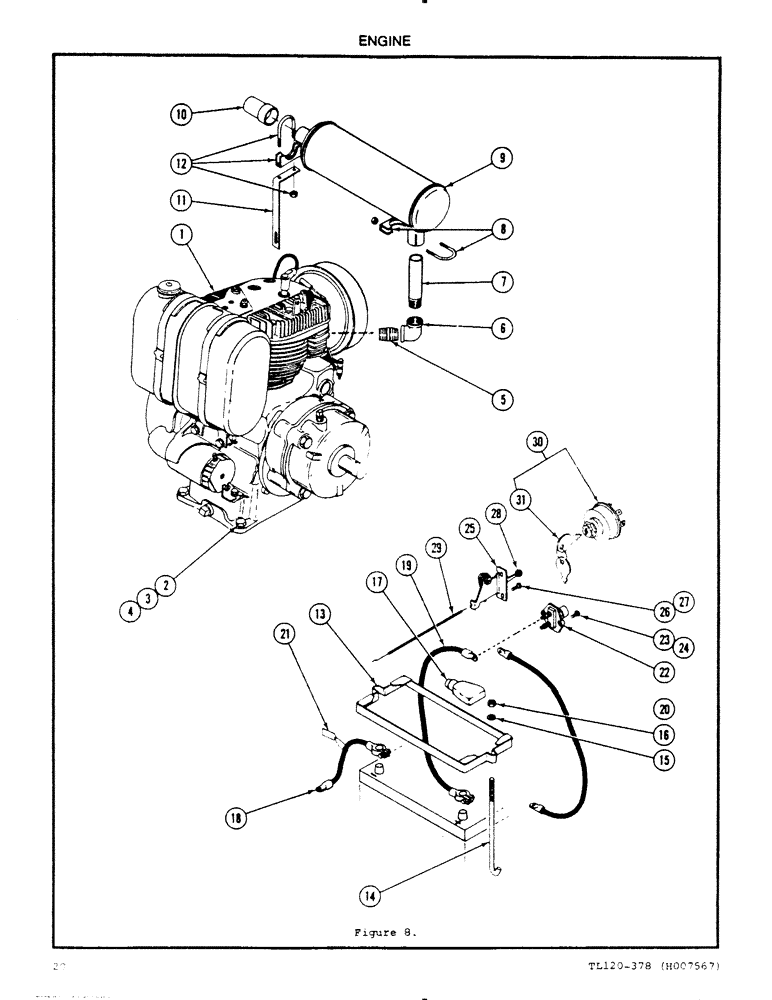

Запчасти Case 120 (20) - ENGINE

1

ENGINE - Kohler - 12 HP

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

D41740

WASHER

- Flat HT (3/8)

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

Nut NC Hex C/L (3/8)

4шт.

5

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

Nipple - Pipe (1) (all thread)

1шт.

6

221-379

ELBOW,90 Degree, 1" NPT

- 90 Degree Pipe (1)

1шт.

7

H291252

TUBE,1.315" ID x 1" DIA x 5" L

Nipple - Special (1 x 5)

1шт.

8

H262550

CLAMP

- Muffler

1шт.

9

H602581

MUFFLER

1шт.

10

H300988

PIPE CLAMP

Extension - Muffler

1шт.

11

H316521

BRACKET

- Muffler

1шт.

12

H262550

CLAMP

- Muffler

1шт.

13

H30833

FUNNEL

Hold Down - Battery

1шт.

14

H30825

BOLT

Bolt - "J" - Battery

2шт.

15

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

16

129-419

WING NUT,5/16"-18

Nut NC Hex C/L (5/16)

2шт.

17

H102681

COVER ASSY

Cover - Battery Terminal (positive cable)

1шт.

18

H172304

NEG BATTERY CABLE

Cable - Battery - NEGATIVE - GROUND

1шт.

19

H116996

CABLE PULLING GRIP

Cable - Battery - POSITIVE

1шт.

20

H185280

CABLE PULLING GRIP

Cable - Solenoid (starter, Serial Range: switch-starter)

1шт.

21

H198457

TAG

- Cable (ground) tie to ground cable

1шт.

22

H35048

IGNITION SWITCH

Switch - Starter

1шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

25

H581736

CONTROL BLOCK

Control - Throttle

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

27

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

28

H244434

KNOB

1шт.

29

H265728

CABLE

Conduit & Wire - Throttle Control

1шт.

30

H71498

SWITCH

- Ignition, Includes: Ref. 31

1шт.

31

A24509

KEY

- ignition start, Set of 2

1шт.

32

H604199

HARNESS

Diagram & Wiring Harness

1шт.
