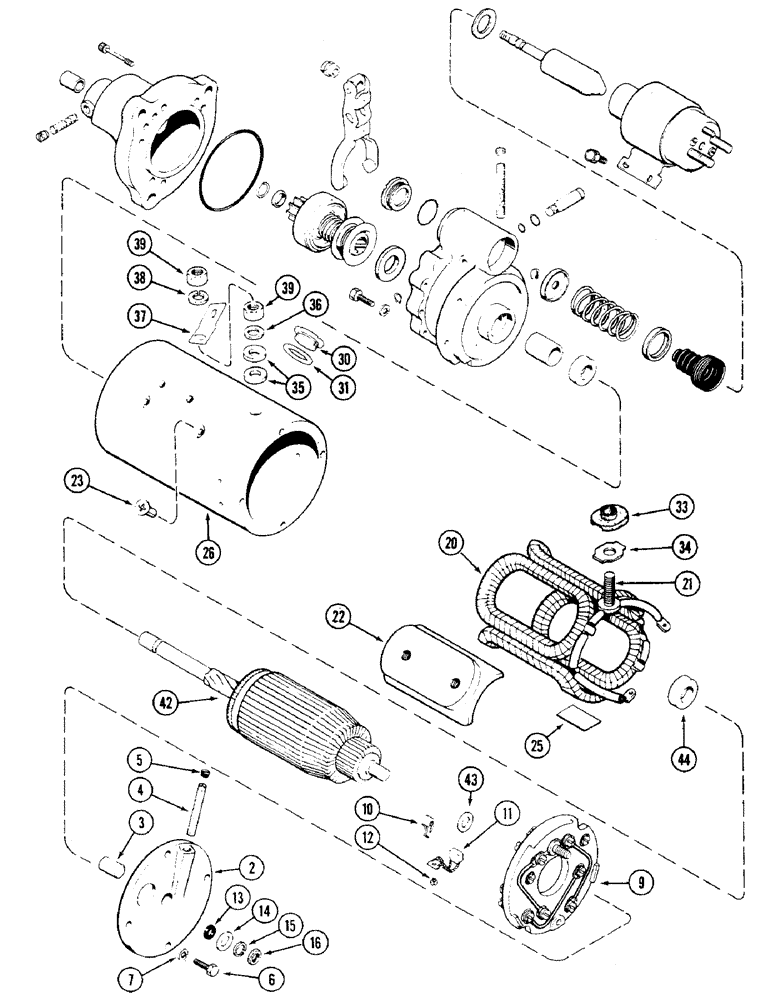

Запчасти Case 475 (072) - L52632 STARTER, DELCO-REMY NO. 1113404 (55) - ELECTRICAL SYSTEMS

L52632

STARTER MOTOR

STARTER ASSEMBLY - (Delco-Remy #1113404) (Order A149056 from figure 84), Includes: Refs. 2-44

1шт.

2

A45365

FRAME

ASSEMBLY - commutator end (Replaces A43849), Includes: Refs. 3-5

1шт.

3

A42323

BUSHING

- frame

1шт.

4

R15023

WICK

- oil

1шт.

5

221-1041

PLUG

- oil wick hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A43850

PLATE

ASSEMBLY - brush (Less brushes), Include: Refs. 10

1шт.

10

A42333

SPRING

- brush tension

4шт.

11

A40891

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - starter

4шт.

12

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush lead (#8 x 5/16" NC round head)

4шт.

13

A42085

BUSHING

WASHER - brush plate terminal insulating (Rubber)

1шт.

14

R15013

WASHER

- terminal

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Terminal 3/8"-16, G5

2шт.

20

A42332

COIL

ASSEMBLY - field, Includes: Ref. 21

1шт.

21

A40896

STUD

- starter terminal

1шт.

22

R15115

SHOE

- pole

4шт.

23

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes

8шт.

25

A42786

LARGE PLATE

INSULATION - coil junction (Replaces A42327)

2шт.

26

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

30

R21587

PLUG

- brush inspection (In frame)

1шт.

31

A41924

GASKET

- inspection plug

1шт.

A41925

BUSHING

ASSEMBLY - field coil stud insulation, Includes: Refs. 33

1шт.

33

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

34

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

35

D30005

INSULATOR

- field coil stud, outer

2шт.

36

D30006

WASHER

- terminal stud

1шт.

37

A43863

ROD, CONNECTING

CONNECTOR - field, Serial Range: stud-solenoid

1шт.

38

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

39

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

42

A43855

ARMATURE

- starter

1шт.

43

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (Commutator end)

1шт.

44

A43853

BUSHING

SPACER - armature (Shift lever housing)

1шт.
