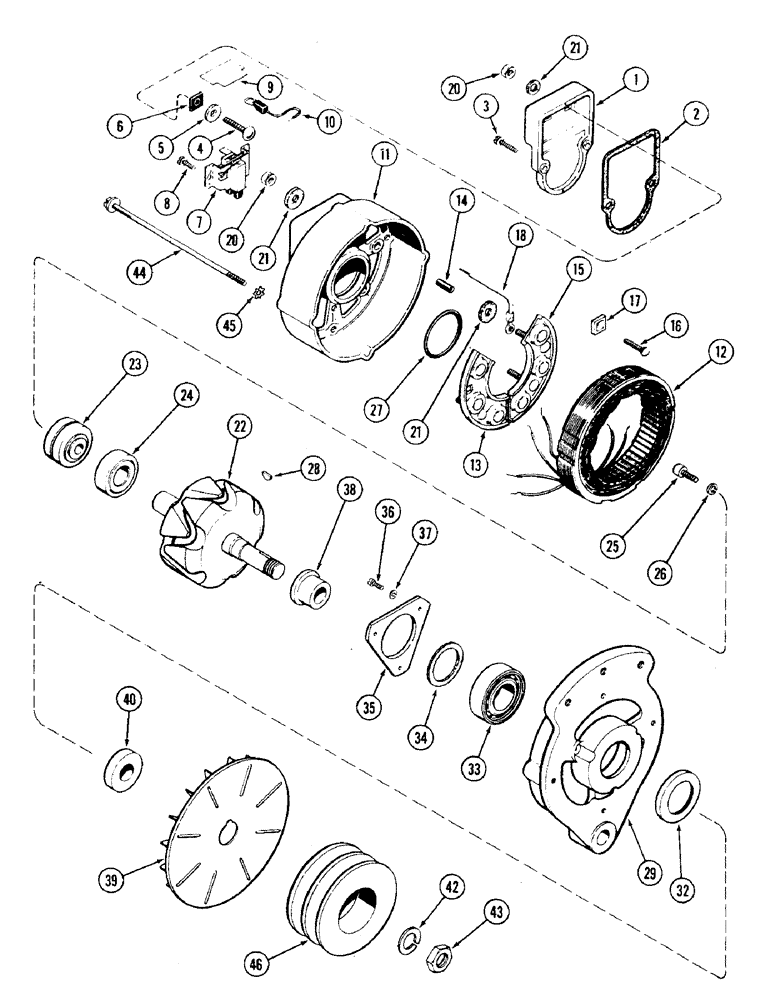

Запчасти Case 475 (070) - A41340 ALTERNATOR (55) - ELECTRICAL SYSTEMS

L12255

ALTERNATOR ASSEMBLY - J.I. Case installed with pulley (Order A41340)

1шт.

A47430

ALTERNATOR

ALTERNATOR ASSEMBLY - remanufactured

1шт.

104022A1R

REMAN-ALTERNATOR

Reman for New P/N A47430

1шт.

A47431

CORE-ALTERNATOR

Alternator - core number. Used to return used alternator for credit

1шт.

A41340

ALTERNATOR

ALTERNATOR ASSEMBLY - new, without pulley (Motorola #MH12N-601), Includes: Refs. 1-45

1шт.

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 AMP Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 VOLT 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A41340

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A41435

COVER ASSY

COVER - rear housing

1шт.

2

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

3

187-482

SPARE PART SCREW - cover (#8 x 3/4" hex head)

2шт.

4

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, , Field wire Short NK, 3/16"-24 x 3/4", G2

1шт.

5

G49045

WASHER

WASHER - field bolt

1шт.

6

A41041

INSULATOR

INSULATOR - brush

1шт.

A44580

SLIP RING

SLIP RING AND BRUSH KIT - alternator, Includes: Ref. 7

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH AND HOLDER ASSEMBLY - alternator

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - brush holder (#8 x 1/2" hex head)

2шт.

9

A41042

INSULATOR

INSULATOR - brush shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

2шт.

11

A41045

COVER

HOUSING - rear

1шт.

12

A41327

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

13

A47617

DIODE

DIODE ASSEMBLY - negative (Black)

1шт.

14

A41040

INSULATOR

INSULATOR - (Nylon) (Cut to length required)

1шт.

15

A47616

DIODE

DIODE ASSEMBLY - positive (Red)

1шт.

16

A41436

SCREW

STUD - rectifier ring

1шт.

17

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

CABLE - phase tap

1шт.

20

A41060

LOCK NUT

LOCKNUT - #10-24 Sems

7шт.

21

A47612

WASHER

WASHER - insulation

7шт.

22

A41033

IMPELLER

ROTOR ASSEMBLY - alternator, Includes: Refs. 23-26

1шт.

23

A41032

SLIP RING

RING - slip

1шт.

24

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - rotor shaft

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - (#10-32 x 5/8" hex socket head)

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A42806

RING

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

HOUSING - front (Includes adapter)

1шт.

32

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

33

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - rotor shaft

1шт.

34

A41039

RETAINER

WASHER - retainer

1шт.

35

A41050

SPARE PART RETAINER - front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - (#8 x 3/8" NC, slotted pan head)

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

38

A41052

SLEEVE

SLEEVE - shaft

1шт.

39

A42431

FAN

FAN - cooling

1шт.

40

A42432

SPACER

SPACER - fan

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

43

A41035

NUT

NUT - pulley retaining (5/8" NF hex)

1шт.

44

A41037

BOLT

BOLT - through

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, , thru bolt Ext-Int Tooth, #8

4шт.

46

A41057

PULLEY

PULLEY - alternator drive

4шт.
