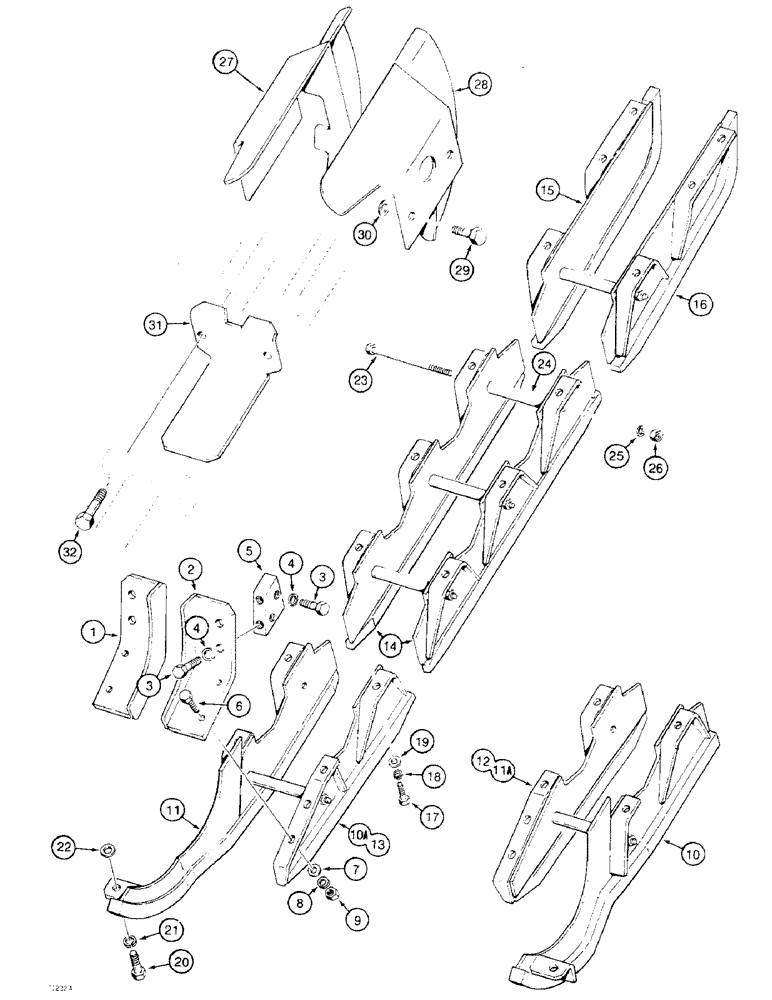

Запчасти Case 475 (184) - TRACK GUARDS (48) - TRACKS & TRACK SUSPENSION

1

D39558

GUARD

- sprocket, left-hand outer, right-hand inner

2шт.

2

D39559

GUARD

- sprocket, right-hand outer, left-hand inner

2шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

16шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

D39560

BLOCK

- sprocket guard mounting

4шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

8шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

10

D50532

GUARD

TRACK GUARD - outer, rear, right-hand, used before tractor SN 3065441

1шт.

10a

D39567

GUARD

TRACK GUARD - outer, rear, right-hand, used on tractor SN 3065441 and after (Replaces D39566)

1шт.

11

D50533

LOCK

TRACK GUARD - outer, rear, left-hand, used before tractor SN 3065441

1шт.

11a

D39566

GUARD

TRACK GUARD - outer, rear, left-hand, used on tractor SN 3065441 and after (Replaces D39567)

1шт.

12

D39566

GUARD

TRACK GUARD - inner, rear, right-hand (Replaces D39567)

1шт.

13

D39567

GUARD

TRACK GUARD - inner, rear, left-hand (Replaces D39566)

1шт.

14

D35387

GUIDE

TRACK GUARD - center

4шт.

15

D39553

GUARD

TRACK GUARD - front, left-hand outer, right-hand inner

2шт.

16

D39554

GUARD

TRACK GUARD - front, right-hand outer, left-hand inner

2шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

32шт.

18

92-8

LOCK WASHER,1/2"

32шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

32шт.

20

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used with D50532 and D50533 track guards only Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with D50532 and D50533 track guards only 5/8"

2шт.

22

195-41

WASHER,5/8"

Used with D50532 and D50533 track guards only 5/8"

2шт.

23

13-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex head, 1/2" - 13 NC x 7-1/2"

10шт.

24

D35372

BUSHING

SPACER - track guard

10шт.

25

92-8

LOCK WASHER,1/2"

10шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

10шт.

27

D39575

GUARD

- idler wheel, left-hand

2шт.

28

D39574

GUARD

- idler wheel, right-hand

2шт.

29

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

30

D35268

SHIM,1/32" Thk

Guard 1/32" Thk

1шт.

31

D48940

GUARD

- track frame

2шт.

32

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.
