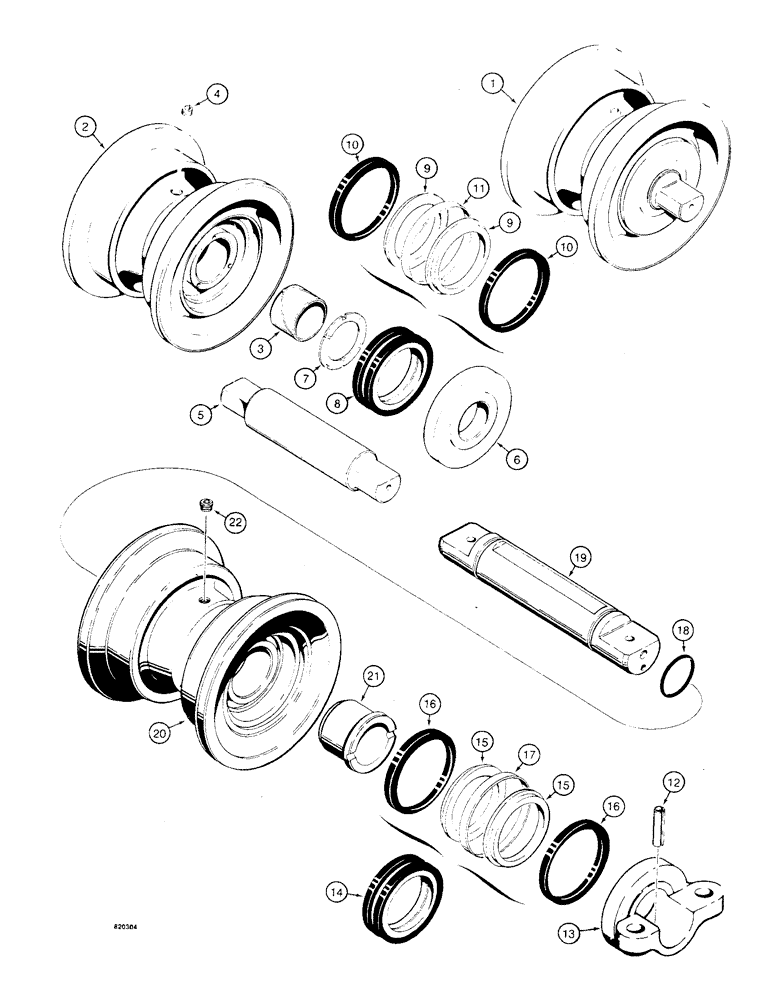

Запчасти Case 475 (180) - TRACK ROLLERS, R24034 TRACK ROLLER, WITHOUT MOUNTING BRACKET (48) - TRACKS & TRACK SUSPENSION
№
Артикул
Название
Примечание
Количество
1
R24034
ROLLER
TRACK ROLLER ASSEMBLY - Case-made, if used, Includes: Refs. 2-11
10шт.
2
R24033
ROLLER, TRACK
ROLLER - track, Includes: Ref. 3
1шт.
3
D46396
BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L
- track roller
2шт.
4
221-841
PLUG
- hex socket head, 1/4" NPT
1шт.
5
D43858
SHAFT
- track roller
1шт.
6
D35265
COLLAR
- shaft
2шт.
7
D35266
THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk
THRUST WASHER - track roller
2шт.
8
R39273
SEAL
FACE SEAL - track roller, Includes: Refs. 9-11
2шт.
9
NSS
NOT SOLD SEPARAT
BODY - face seal, split
2шт.
D36826
SEAL KIT
KIT - seal repair, Includes: Refs. 10, 11
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - rubber
2шт.
11
NSS
NOT SOLD SEPARAT
RETAINER - plastic
1шт.
R36468
ROLLER
TRACK ROLLER ASSEMBLY - Intertrac, if used, R36468 w/mounting bracket, see ref. 13 for I.D., Includes: Refs. 12-22
10шт.
12
R33570
PIN
ROLL PIN - bracket retaining, R36468 track roller w/mounting bracket, see ref. 13 for I.D.
2шт.
13
R36465
BRACKET - roller mounting, and end cap, R36468 track w/mounting bracket, see ref. 13 for I.D.
2шт.
14
R39273
SEAL
FACE SEAL - track roller, R36468 w/mounting bracket, see ref. 13 for I.D.
2шт.
15
NSS
NOT SOLD SEPARAT
BODY - face seal, split, R36468 track roller w/mounting bracket, see ref. 13 for I.D.
2шт.
D36826
SEAL KIT
KIT - seal repair, R36468 track roller w/mounting bracket, see ref. 13 for I.D., Includes: Refs. 16, 17
1шт.
16
NSS
NOT SOLD SEPARAT
SEAL - rubber, R36468 track roller w/mounting bracket, see ref. 13 for I.D.
2шт.
17
NSS
NOT SOLD SEPARAT
RETAINER - plastic, R36468 track roller w/mounting bracket, see ref. 13 for I.D.
1шт.
18
A7560
O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro
- shaft, R36468 track roller w/mounting bracket, see ref. 13 for I.D.
2шт.
19
R33952
SHAFT
- track roller, R36468 w/mounting bracket, see ref. 13 for I.D.
1шт.
R36467
ROLLER
ASSEMBLY - track, R36468 w/mounting bracket, see ref. 13 for I.D., Includes: Refs. 20-22
1шт.
20
NSS
NOT SOLD SEPARAT
ROLLER - track, R36468 w/mounting bracket, see ref. 13 for I.D.
1шт.
21
R33951
BUSHING
- track roller, R36468 w/mounting bracket, see ref. 13 for I.D.
2шт.
22
R33557
PLUG
- track roller, R36468 w/mounting bracket, see ref. 13 for I.D.
1шт.
Выбрано товаров: 26
