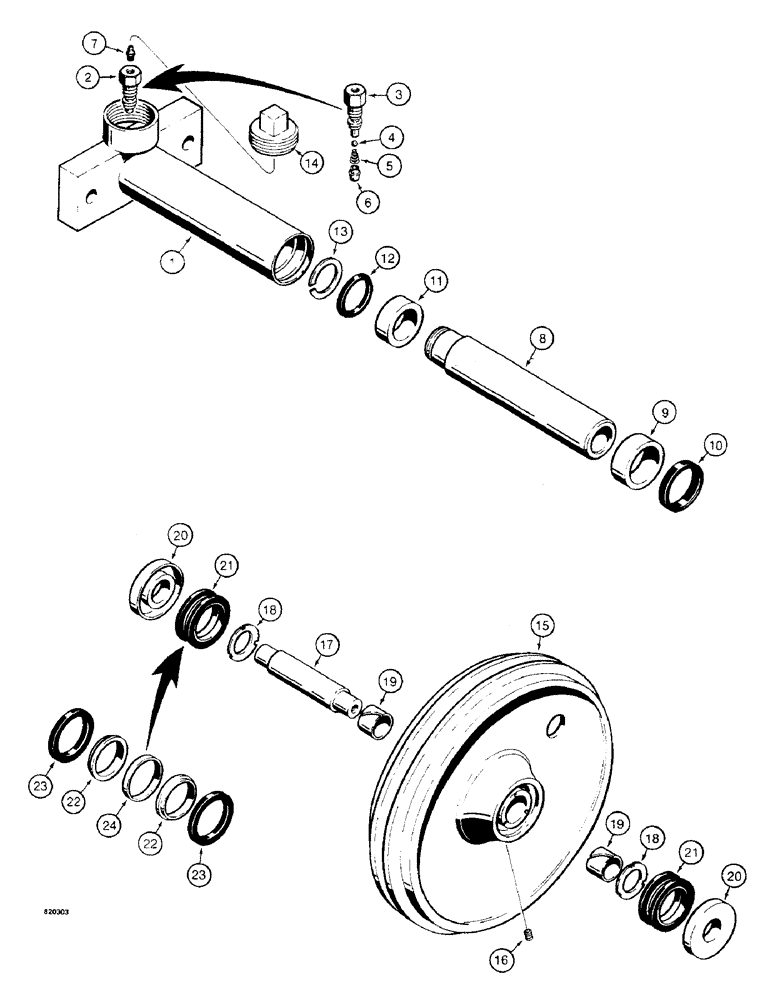

Запчасти Case 475 (178) - TRACK ADJUSTER ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

D48596

ADJUSTER

TRACK ADJUSTER ASSEMBLY - slide, Includes: Refs. 1-6

2шт.

1

D48595

TUBE ASSY.

TUBE - track adjuster

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK VALVE ASSEMBLY - ball, track adjuster, Includes: Refs. 3-6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - check valve assembly

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check ball

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D35506

PISTON

ROD - piston

1шт.

9

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- wiper

1шт.

10

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

11

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

- piston rod

1шт.

12

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

U-CUP SEAL - piston rod

1шт.

13

A27085

RING

SNAP RING - piston

1шт.

14

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

D35271

FRONT IDLER

IDLER ASSEMBLY - track

2шт.

15

D35272

FRONT IDLER

IDLER - track, assembly, Includes: Refs. 16-24

1шт.

16

221-841

PLUG

- hex socket head, 1/4" NPT, idler assembly

1шт.

17

D35270

SHAFT

- idler, assembly

1шт.

18

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

THRUST WASHER - shaft, idler assembly

2шт.

19

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, shaft, idler assembly

2шт.

20

D35265

COLLAR

- face seal, idler assembly

2шт.

21

R39273

SEAL

FACE SEAL - idler, assembly, Includes: Refs. 22-24

2шт.

22

NSS

NOT SOLD SEPARAT

BODY - face seal, split, idler assembly

2шт.

D36826

SEAL KIT

KIT - face seal repair, idler assembly, Includes: Refs. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - rubber, idler assembly

2шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - plastic, idler assembly

1шт.
