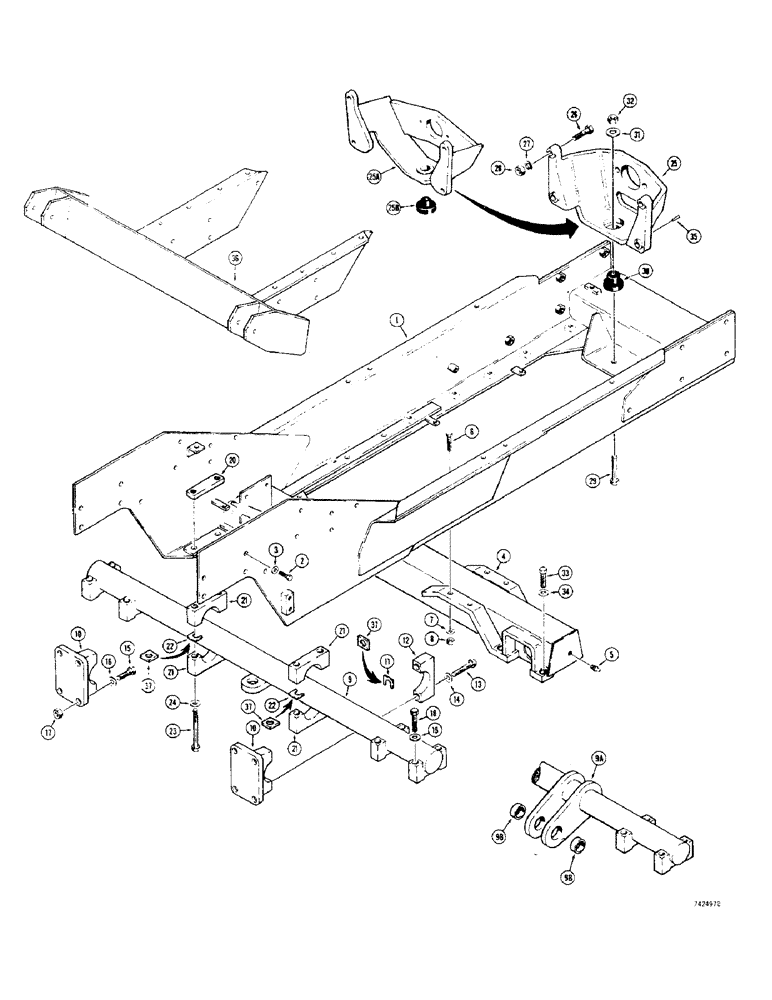

Запчасти Case 475 (276) - MAIN FRAME AND CROSSMEMBERS (39) - FRAMES AND BALLASTING

1

R31152

MAIN FRAME - engine

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

4

D50527

CROSSMEMBER - front

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

8

25-1012

NUT,3/4"-10, G5

4шт.

9

D50529

BAR

CROSSBAR - rear, without lugs for plow lift cylinder mounting, if used

1шт.

D50529 rear crossbar may be replaced with R39843 rear crossbar. If this is done, you will no longer need Ref. 1 - 5 on Figure 258.

1шт.

9a

R39843

CROSSBAR ASSEMBLY - rear, with lugs for plow lift cylinder mounting, if used, Includes: Refs. 9B

1шт.

D50529 rear crossbar may be replaced with R39843 rear crossbar. If this is done, you will no longer need Ref. 1 - 5 on Figure 258.

1шт.

9b

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- rear crossbar lugs

4шт.

10

D35177

CLAMP

- rear, final drive to rear crossmember

2шт.

11

D33982

BUSHING

SPACER - clamp, no longer used, replace with R28516 spacer, ref. 37

2шт.

12

D34663

CLAMP

- front, final drive to rear crossmember

2шт.

13

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

- hex head, 7/8" - 9 NC x 4"

4шт.

14

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

15

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

17

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

8шт.

18

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

20

D34722

BLOCK

- tapped

2шт.

21

D34663

CLAMP

- rear, crossmember to main frame

4шт.

22

D33982

BUSHING

SPACER - clamp, no longer used, replace with R28516 spacer, ref. 37

2шт.

23

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex head, 7/8" - 9 NC x 7-1/2"

4шт.

24

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

25

L46461

BRACKET

SUPPORT - cast, engine, no longer available, order L78158 support, (1) D55295 hose, (1) 217-178 barb fitting, (2) 13-836 bolts, (2) 195-533 washers, (2) 131-10 nuts, and (1) R39061 tube, see figure 196

1шт.

25a

L78158

BRACKET

SUPPORT - welded, engine, Includes: Ref. 25B

1шт.

25b

A19066

MOUNTING PARTS

INSULATOR - rubber

1шт.

26

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

28

25-1012

NUT,3/4"-10, G5

4шт.

29

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

30

A19066

MOUNTING PARTS

INSULATOR - rubber, order separately for L46461 engine support

1шт.

31

195-48

WASHER,3/4" x 2 7/8" x .165"

- flat, 3/4"

1шт.

32

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

33

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

35

139-64

PIN,1/8" x 1 1/2", Tapered

TAPER PIN - no. 5, 1-1/2" long

2шт.

36

F96624

FRAME - ROPS canopy and transmission mounting

1шт.

37

R28516

SPACER

- clamp

4шт.
