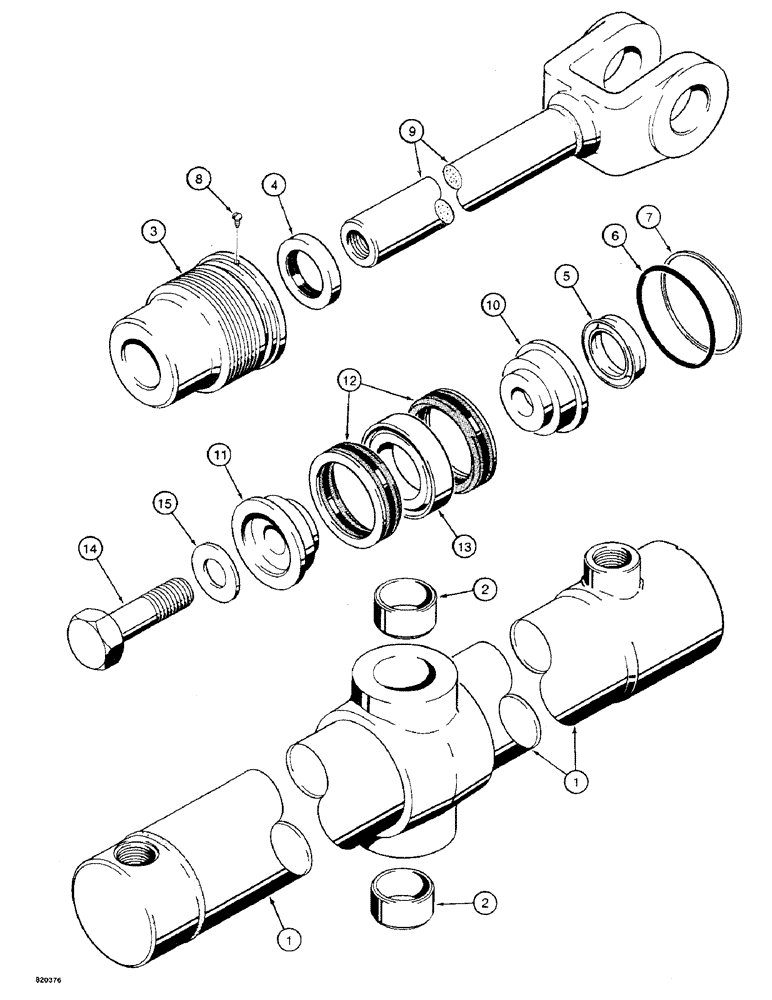

Запчасти Case 475 (218) - G34344 REEL CARRIER AND DOZER LIFT CYLINDER, WITH TWO-PIECE PISTON (35) - HYDRAULIC SYSTEMS

G34344

CYLINDER

ASSEMBLY - 2-1/2" (63 MM) ID x 28" (711 MM) stroke, no longer available, order G101229 cylinder assembly, see figure 220, Includes: Refs. 1-15

2шт.

1

G34346

CYLINDER ASSY.,2.5" ID x 35" L

TUBE - cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

3

G33578

GLAND

ASSEMBLY - cylinder, Includes: Refs. 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32295

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

For severe heat or cold, use P/N G100775 shown below

1шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32295

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G32295

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

9

G34348

ROD

- piston, 1-1/4" (32 MM) diameter

1шт.

10

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

11

D28364

PISTON

- split, bolt end

1шт.

12

G33193

PACKING

ASSEMBLY - piston, Includes: Refs. 12, 13

1шт.

Part of Seal Kit P/N G32295

1шт.

12

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

13

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

14

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 4, 5, 6, 7 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
