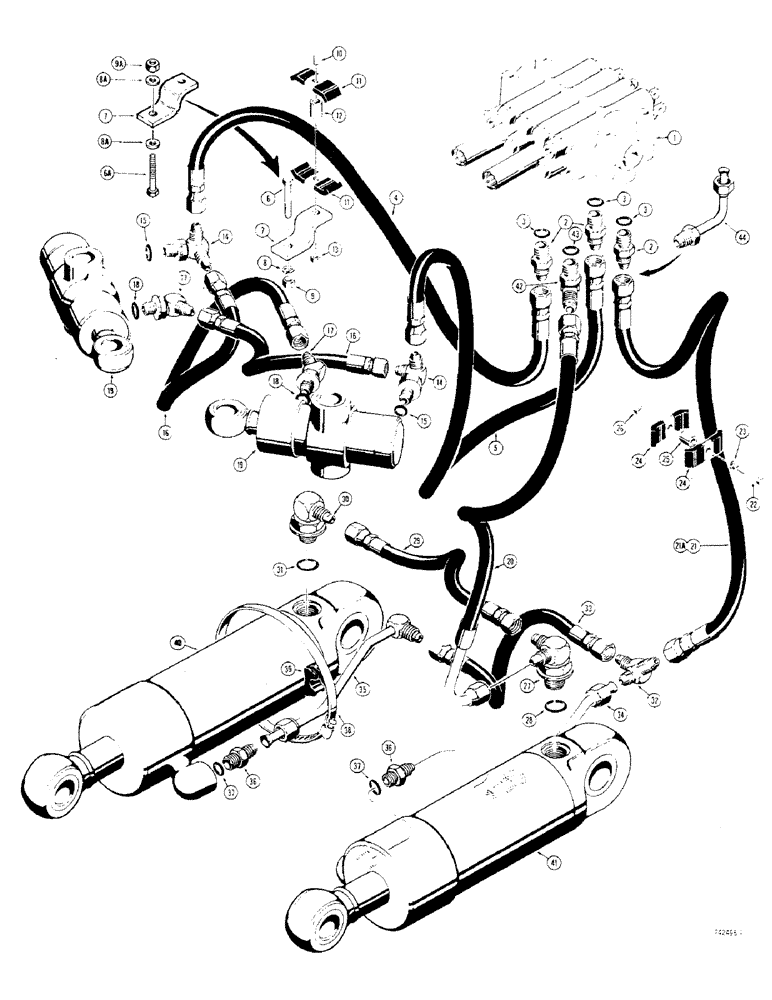

Запчасти Case 475 (216) - PLOW SWING AND LIFT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

R31182

VALVE

CONTROL VALVE - 4 spool, parts list figure 234

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 3

3шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

36252

BEARING ASSY

HOSE - 65" (1651 MM) long, rear port

1шт.

5

R24291

HOSE ASSY.

HOSE - right-hand swing cylinder, 57" (1448 MM) long, front port

1шт.

6

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

If used Hex, 5/8"-11 x 2 1/4", G5

1шт.

6a

113-772

BOLT (SPREADER),Hex, 3/4" - 10 x 2-1/2", Gr 8

BOLT - hex head, 3/4" - 10 NC x 2-1/2", grade 8, used with Loctite 242 (Blue), if used

1шт.

7

R24292

BRACKET - clamp retaining, diameter of lower bolt hole may vary

1шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , If used 5/8"

1шт.

8a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4", if used

2шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , If used 5/8"-11, GC

1шт.

9a

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, , If used 3/4"-10, GC

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

D40236

CLAMP

- hose

2шт.

12

D36524

BUSHING

SPACER - clamp

1шт.

13

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

14

D53471

TEE

- special, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

16

D28524

HOSE

- crossover, 21" (533 MM) long

2шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

19

REF

INSTRUCTION

CYLINDER - swing, see figures 228 and 230 for correct assembly and components

2шт.

20

R24296

HOSE

- rear port, 32" (813 MM) long

1шт.

21

37405

HOSE

- front port, 36" (914 MM) long, no longer used, order D23062 hose

1шт.

21a

D23062

HOSE

- front port, 38" (965 MM) long

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used Hex, 3/8"-16 x 2", G5

1шт.

23

195-25

WASHER,3/8"

- lock, , if used 3/8"

1шт.

24

D40236

CLAMP

- hose, if used

2шт.

25

D36524

BUSHING

SPACER - hose, if used

1шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, if used

1шт.

27

R24297

FITTING

TEE - special, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

29

D64000

HOSE

- crossover, 20" (508 MM) long

1шт.

30

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

32

R24295

FITTING

TEE - special

1шт.

33

R25534

HOSE ASSY.

HOSE - crossover, 12-1/2" (317 MM) long

1шт.

34

R24300

TUBE,.625" OD

- rod end of cylinder, right-hand

1шт.

35

R24298

TUBE,0.625" OD

- rod end of cylinder, left-hand

1шт.

36

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 37

2шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

38

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - screw type

2шт.

39

D38648

BLOCK

CUSHION - rubber

2шт.

40

G34211

CYLINDER ASSY.

CYLINDER - lift, left-hand, parts list figure 226

1шт.

41

G34210

CYLINDER ASSY.

CYLINDER - lift, right-hand, parts list figure 226

1шт.

42

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

44

R31261

TUBE - hydraulic, at control valve

1шт.
