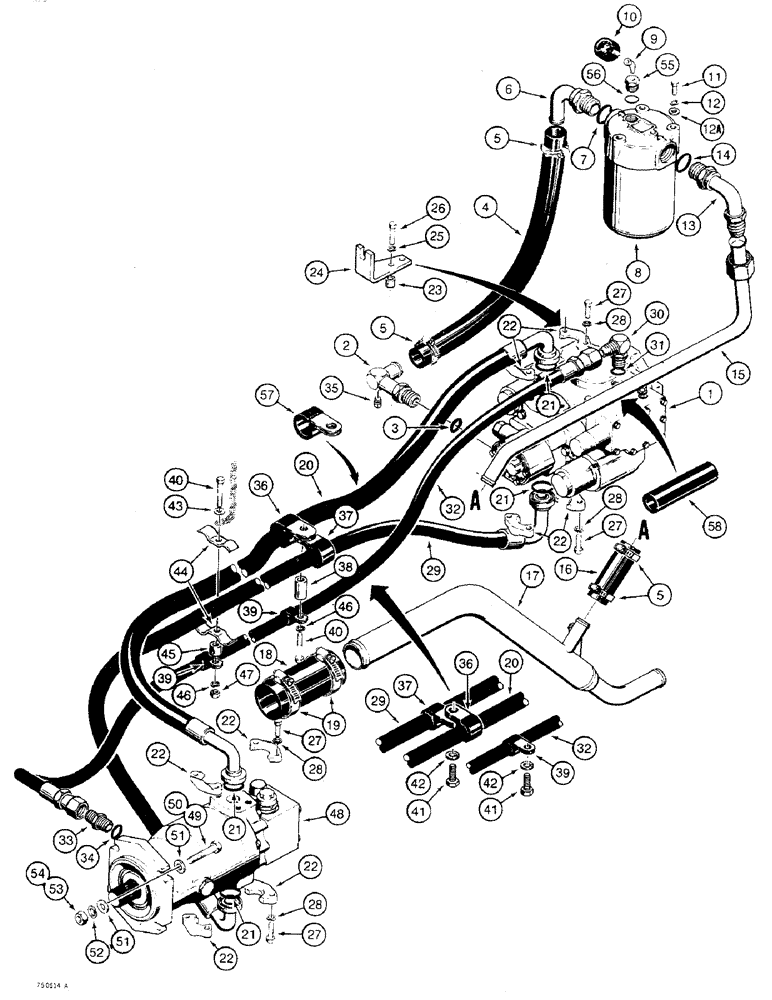

Запчасти Case 475 (204) - VIBRATOR DRIVE HYDRAULIC CIRCUIT AND MOTOR MOUNTING (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
R24324
PUMP
ASSEMBLY - hydrostatic, vibrator drive, parts list figure 212
1шт.
2
R24252
STEM
FITTING - elbow, Includes: Ref. 3
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- stem fitting
1шт.
4
R29836
FLEXIBLE HOSE
HOSE - 1" (25 MM) ID x 21-1/4" (540 MM) long
1шт.
5
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, adjustable
4шт.
6
R25134
TUBE ASSY.
STEM FITTING - elbow, at filter, Includes: Ref. 7
1шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- stem fitting
1шт.
8
R25511
FILTER CARTRIDGE
FILTER ASSEMBLY - hydraulic, parts list figure 140
1шт.
9
221-401
ELBOW,45 Degree, 1/8"-27, NPT
STREET ELBOW - 45 degree
1шт.
10
R29792
GAUGE ASSY.
RESTRICTION INDICATOR - filter
1шт.
11
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
3шт.
12
92-6
LOCK WASHER,3/8"
3шт.
12a
95-6
WASHER,3/8"
- flat, 3/8"
3шт.
13
R25137
TUBE ASSY.
TUBE - at filter, Includes: Ref. 14
1шт.
14
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- tube
1шт.
15
R24242
TUBE,1" OD
- filter to hydraulic reservoir
1шт.
16
R13912
HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3
1шт.
17
R24254
MANIFOLD
TUBE - manifold
1шт.
18
R24841
HOSE ASSY.
HOSE - 2" (50 MM) ID x 6-1/2" (165 MM) long
1шт.
19
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
adjustable #36, 1.81/2.75 Type F Worm
2шт.
20
R24261
HOSE
- to of pump to top of motor
1шт.
21
D31968
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
- hoses with flange fittings
4шт.
22
A12306
FLANGE
- split
8шт.
23
D43608
SPACER
- bracket
2шт.
24
R24263
BRACKET
- control cable mounting
1шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
27
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
16шт.
28
92-6
LOCK WASHER,3/8"
16шт.
29
R24251
HOSE
- bottom of pump to bottom of motor
1шт.
30
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, adjustable, Incl. Ref. 31
1шт.
31
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- elbow
1шт.
32
R24247
HOSE
- top of pump to left-hand side of motor, 105" (2667 MM) long
1шт.
33
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - straight, male, Includes: Ref. 34
1шт.
34
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- connector
1шт.
35
221-11
PLUG,Sq Hd, 1/8"-27
- square head, 1/8" NPT
1шт.
36
D40471
CLAMP
- P-type, 1-1/4" ID
1шт.
37
R24245
CLAMP - P-type, 1-7/16" ID
1шт.
38
A30965
SPACER
- clamp, if used, used when 3 clamps are fastened together
1шт.
39
D47782
CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type
- P-type, 1" ID
2шт.
40
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex head, 3/8" - 16 NC x 2-1/2"
1-2шт.
41
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
BOLT - hex head, 3/8" - 16 NC x 1/2", if used, used only when clamps are fastened in 2 groups, as illustrated
2шт.
42
92-6
LOCK WASHER,3/8"
if used 3/8"
2шт.
43
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
44
R24265
CLAMP
- hose, double
2шт.
45
R29846
SPACER - clamps 3/8" Pipe x 5/8"
1шт.
46
92-6
LOCK WASHER,3/8"
1-2шт.
47
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
48
F94287
MOTOR HOUSING
MOTOR ASSEMBLY - hydrostatic, vibrator drive, parts list figure 208
1шт.
For additional motor mounting parts, see Figure 262.
1шт.
49
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- hex head, 1/2" - 13 NC x 2-1/2", if used
4шт.
50
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
If used Hex, 1/2"-13 x 2", G5
4шт.
52
92-8
LOCK WASHER,1/2"
if used 1/2"
4шт.
53
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC, if used
4шт.
55
R26251
ADAPTER - special, restriction indicator, Includes: Ref. 56
1шт.
57
S86530
CLAMP
- hose, uses transmission control valve mounting bolt
1шт.
58
R29676
HOSE - split, tube guard
1шт.
56
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- adapter
1шт.
Выбрано товаров: 60
