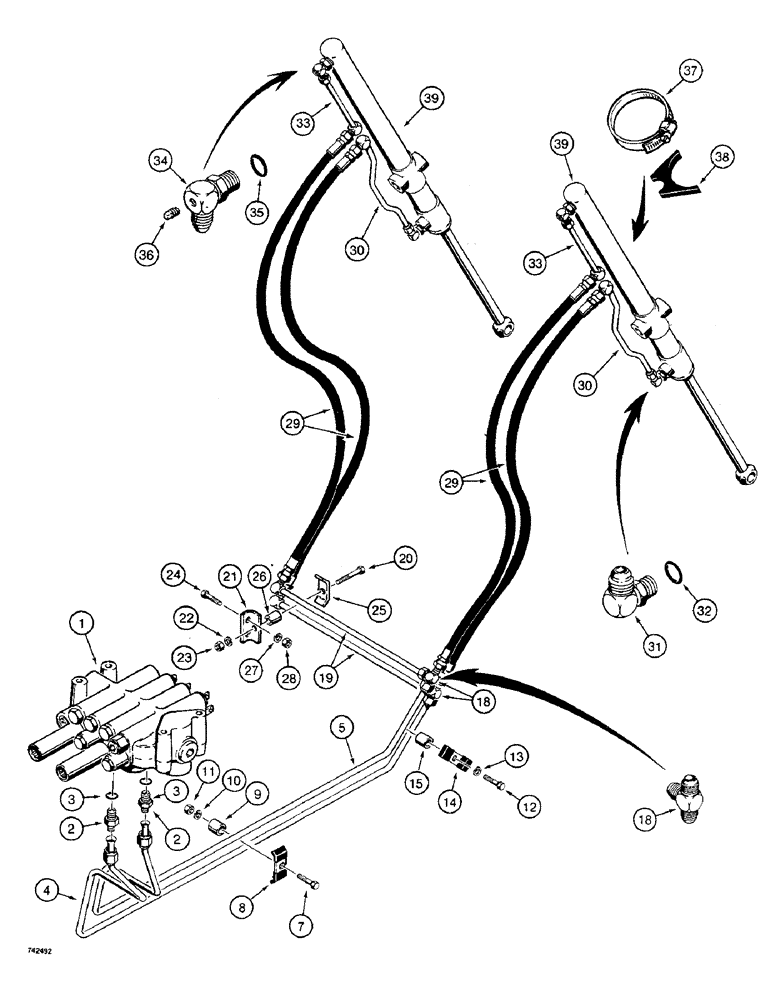

Запчасти Case 475 (202) - DOZER BLADE AND REEL CARRIER LIFT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

R31182

VALVE

CONTROL VALVE - 4 spool, parts list figure 234

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

R25539

TUBE ASSY.

TUBE - at control valve, rear port

1шт.

5

R25537

TUBE

- at control valve, front port

1шт.

7

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

1шт.

8

D31782

FIXING BRACKET

CLAMP - tube

1шт.

9

D35228

SPACER

- clamp

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex head, 5/16" - 18 NC x 1-3/8"

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

R17319

CLAMP

- tube

1шт.

15

D33552

BUSHING

SPACER - tube

1шт.

18

218-595

TEE,7/8"-14, 37 Degree

- tube, crossover

2шт.

19

R25535

TUBE - crossover

2шт.

20

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

1шт.

21

D35164

BRACKET - clamp

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

R16916

CLAMP - tube

1шт.

26

D33552

BUSHING

SPACER - clamp

1шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

L46723

HOSE

- 42" (1067 MM) long

4шт.

30

D36138

HOSE ASSY.

TUBE - at cylinder, rod end

2шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 32

3шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

D34747

TUBE

- at cylinder, closed end

2шт.

34

R19576

FITTING

ELBOW - adjustable, special, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

36

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

37

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - screw type

4шт.

38

D38648

BLOCK

CUSHION - rubber

4шт.

39

REF

INSTRUCTION

CYLINDER - lift, see figures 218 and 220 for correct assembly and components

2шт.
