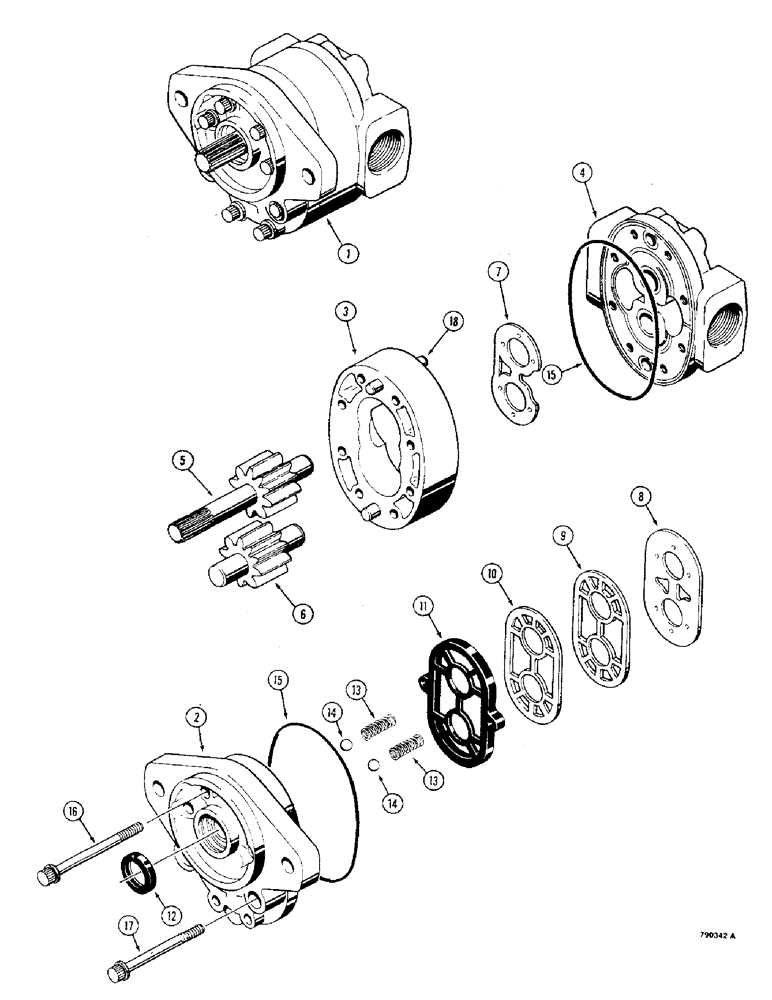

Запчасти Case 475 (198) - R24624 EQUIPMENT PUMP (35) - HYDRAULIC SYSTEMS

1

R24624

PUMP

PUMP - hydraulic, Cessna no. 24502-LAN, Includes: Refs. 2-18

1шт.

RR24624

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

RC24624

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

R25505

COVER

COVER - driveshaft end

1шт.

3

R25508

BODY

BODY - center

1шт.

4

D48883

COVER

COVER - port end

1шт.

R25512

GEAR SET

GEAR SET - drive and driven, Includes: Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - driven

1шт.

N6471

KIT

KIT - seal (Replaces A45358), Includes: Refs. 7-15

1шт.

7

A45358

PLATE

PLATE - thrust (Replaces N6471)

1шт.

8

H335331

DIAPHRAGM

DIAPHRAGM - pump

1шт.

9

H260935

GASKET

GASKET - protector

1шт.

10

H260927

GASKET

GASKET - backup

1шт.

11

D48888

SEAL

SEAL - diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - drive shaft

1шт.

13

D31403

SPRING

SPRING - ball retaining

2шт.

14

211-312

BALL,13/32" Dia

BALL - steel

2шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

O-RING - covers

2шт.

16

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3"

4шт.

17

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 2-3/4"

4шт.

18

A40785

AXLE PIN,12.7mm OD x 63.5mm L

DOWEL - body

2шт.
